SANSEL Model TCAL 1501/250 of Liquid Temperature calibration bath range from Amb. +5 to 250 °C are high precision, better resolution, stability, fast in heating and cooling. Large volume testing area 60mm Dia x 120mm Depth to calibrate more number of Thermometer at a time with better uniformity using Magnetized stirring. These models can meet any calibration requirement in laboratories or in on site applications. This models are inbuilt measuring facility of the Thermocouples, RTD, Resistance, millivolt & milliamps to directly read the signals from most of the temperature sensors, indicator with sensor and Transmitter.

Temperature range from Amb. +5 to 250 °C with high resolution 0.01 °C up to 250 °C. This model is mainly used in all industries, like Pharmaceutical, food, Research & calibration laboratories etc., These models are using 4.3” True colour TFT display with Touch screen, easy to read multi parameter at the same time like, Block temperature, set temperature, measure value, Real time clock with date & time, Control Output %, Stability time & status, Range of the equipment with necessary unit of measurement and three soft touch keys are used for measure configuration, settings, calibration etc.., It has one more advantage of help menu for operating instruction of the equipment via the same screen , Hence no need of Hard copy of Instruction manual.

Features :

• 4.3 inch True TFT DISPLAY with touch screen
• Portable & Rugged
• Range from Amb. + 5 to 250 °C
• Resolution 0.01 °C
• Stability ± 0.03°C
• Radial Uniformity better than ± 0.02°C
• UUC measure option provided
• Stabilization time & status indication provided
• Inter changeable insert to suit different diameter sensor - up to 60 mm
• Optional PC Interface with automatic calibration software

Specifications :

• Model: Tcal 1501 / 250
• Display: 4.3 inch True TFT LCD Display with Touch screen
• Temperature Range: Amb. +5 to 250°C
• Resolution: 0.01°C
• Stability: ± 0.03°C
• Accuracy: Better than ± 0.3°C
• Stabilization Time: 45 minutes
• Heating time: 60 mins (Amb. to 250°C)
• Cooling time: 90 mins (250 to 50°C )
• Chamber Dimension: 80 x 140 mm (dia X depth)
• Testing area: 60 x 120 mm (dia X depth)
• Temperature medium: Silicon oil (200cs recommended)
• Measure inputs: RTD-PT 100, PT 1000 / TC-J, K, R, S, T, E, B , N / mA /mV / ohms
• PC Interface: RS 485 (optional)
• Power supply: 230V AC or 110V AC 50/60Hz
• Power Consumption: 1200 VA
• Switch test: Provided
• Dimension in mm: 340 x 175 x 425 (L x W x H) (Approx.)
• Weight (Approx.): 12 kg (without oil)

Accessories :

• Basic Instrument
• Cable for Thermostat Switch Test
• Cable for Thermocouple(TC) test probe
• Cable for RTD test probe
• Aluminum Dummy cover
• Teflon top cover
• Thermometer stand set
• Silicon oil – 1 liters
• SS insert bucket
• Stir magnet(2 nos)
• Instruction Manual
• Traceable Calibration Certificate
• Mains Card
• Spare Fuses

SANSEL Model BCAL 40, Black body Calibrator is used to measure the accuracy and performance of non-contact fever detection systems, like medical thermometer & image scanner. Now it is being used in relation to COVID-19 (corana virus). This Blackbody Source meets the demand for a simple cost effective solution but high accurate device for the calibration of thermal imager and IR thermometers that are used at temperature around that of the human body. Unlike Heat only devices, This model uses a solid state Heat & cool Technology, so that this can be generate both Heat and Cool. This having benefits to maintain the block temperature in different ambient temperature.

Features :

• 3.5 inch True TFT display with touch screen
• Range from 20 to 50°C / 68 to 122°F @ Body mode
• Range from 0 to 100°C / 32 to 212°F @ Surface mode @ Amb. 25°C
• Universal wide range power supply 90 to 260V AC / DC
• Extension tube gives better uniformity and avoid losses due to ambient temperature and air movement.
• Indicates both °C & °F at a time
• Stable to ± 0.03°C
• Accurate better than ± 0.3 °C
• Portable, Rugged & Onsite carryable

Technical Details

• Temperature Range Body Mode : 20 to 50 °C / 68 to 122 °F
• Surface Mode : 0 to 100 °C / 32 to 212 °F
• Resolution 0.01 °C
• Stability ± 0.03 °C
• Display 3.5 inch True TFT display with touch screen
• Accuracy ± 0.3 °C
• Temperature Read out °C & °F at a time
• Heating time 10 minutes (Amb. to 50 °C)
• Stabilization time 10 minutes
• Aperture area 25 mm
• Emissivity 0.950
• Power supply 90 to 260V AC / DC / 50/60 Hz
• Power Consumption less than 100 VA
• Overall Dimension in mm 210 x 210 x 140 (L x B x H)(Approx.)
• Instrument Weight 3.7 kg

Accessories :

• Basic Instrument
• Small extension tube
• Large extension tube
• Carry bag
• Traceable calibration certificate
• Spare fuses
• Instruction manual
• Mains card

Optional :

• Carrying case

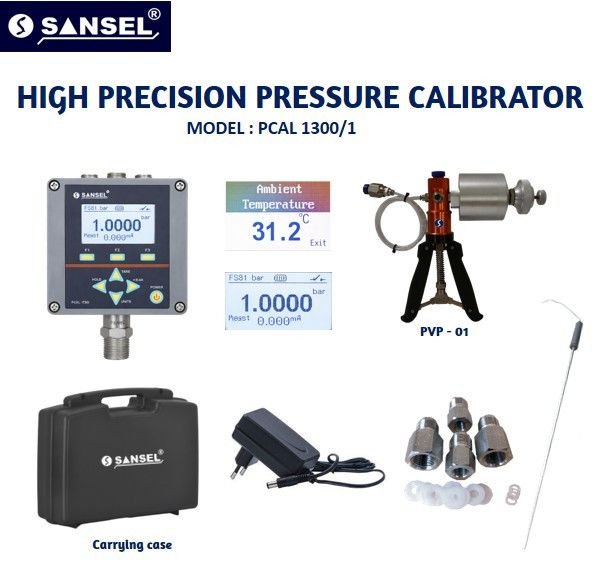

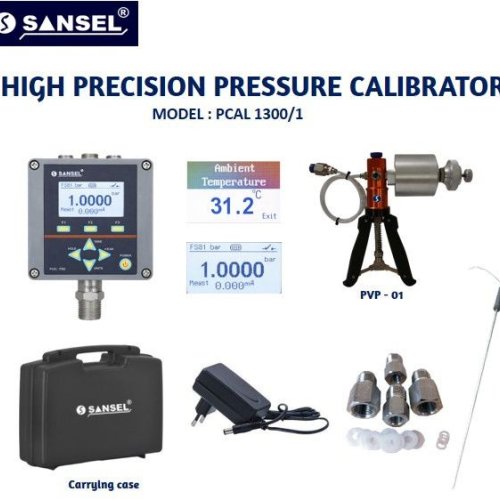

Features :

•  Pressure Ranges from -0.9 up to 1000 bar
•  Wide ranges 0 to 350mbar, 0 to 500 pa, -0.9 to 2 bar, -0.9 to 35 bar, 0 to 350 bar, 0 to 700 bar, 0 to 1000 bar
• Absolute , Differential & gauge type available on request
• Available in both Air, water & Oil medium
• Different variety of Pneumatic & Hydraulic pumps available based on Medium & range requirements
• 2.8” 128 x 64 Dots COG Graphic LCD Display
•  High bright white LED backlight
•  6 digit selectable resolution
•  Better stability & repeatability
• 3 function keys & 4 navigation keys for easy operation
• Optional PC interface with semi Automatic calibration software
• Easy one touch zero
• High resolution RTD-PT 100 & mAmps measure inputs
• Compact size & Rugged

Features :

• 4.3” True colour TFT display with Touch screen
• Temperature Range from 500°C to 1500°C
• Resolution 0.1°C
• Stability ± 0.2°C
• Interchangeable Multi hole thermo wells
• Silicon carbide Heating element
• Power requirement 230VAC / 50Hz / 3500VA
• Semi portable
• ISO / IEC 17025 Accredited calibration certificate

Specifications:

• Model: TCAL 1500 / 1500
• Display: 4.3 inch True TFT LCD Display with Touch screen
• Temperature Range : 500 to 1500 °C
• Resolution: 0.1°C
• Stability: ± 0.5°C
• Radial uniformity: Better than ± 0.5% of reading
• Bath Temperature Control: Digital Temperature Controller with Auto Tune PID Algorithm
• Heating time: 3 ½ Hrs ( Amb. to 1500 °C)
• Time to Stabilize: 30 minutes
• Well Dia: 50 mm
• Well Hole Depth: 240 mm
• Thermo Well Holes: 6, 8, 10, 14 in mm (Approx)
• PC Interface: RS 485 (optional)
• Power supply: 230V AC 50/60Hz (Optional 110V AC)
• Power Consumption: 3500 VA
• Dimension (L x W x H): 250 L X 410 W X 625 + 90 (wheel) H (mm)
• Instruments Weight: 57kg (without well insert) (Approx.)

Sansel model TCAL 1503/-100 Dry Block Temperature Calibrator incorporate the best cooling (FPSC) Technology. This dry well has an advantage of wide temperature range from -100 to 40°C, CFC Free, high efficiency, Fast cooling & Heating, Energy saving & Fluid free. Hence it is a great alternative to Fluidized bath and best suitable for clean room environment.

This Portable Dry Block Calibrator is a high precision, more resolution, better stability, Uniformity, big well dia and depth to calibrate more number of temperature sensors at a time. This model can meet any calibration requirement in laboratories or in Onsite applications. It has inbuilt measuring facility of thermocouples, RTD, Resistance, millivolt, Volt, milliamps and to directly read the signals from most of the temperature sensors, indicator with sensors and transmitters.

This Dry well calibrator model is using 4.3” True colour display with touch screen, easy to read multi parameter at the same time like, Block temperature, Set temperature, Measure value, real time clock with date & time , Control output %, Stability time & Status, Range of the equipment with necessary unit of measurement and three Touch panel keys are used for measure Configuration, Settings, Calibration etc.,. It has one more advantage of help menu for operating instruction of the equipment via the same display screen, Hence no need of hard copy of Instruction manual.

Features :

• 4.3” true colour TFT display with touch screen
• Wide temperature range from -100 to 40°C
• More resolution 0.01°C
• Better stability ± 0.03°C
• Improved Axial & Radial uniformity
• Inbuilt DUC measurement facility for RTD, TC, mV, V, mA & ohms
• Inter changeable insert to suit different diameter of sensor up to 30mm
• Stabilization time & Status indication
• Metrology level performance
• Portable, Rugged & light weight
• Easy Onsite carriable
• Low power consumption
• Optional PC Interface with automatic Calibration Software
• ISO/IEC 17025 Accredited Calibration Certificate.

Specifications:

• Model : TCAL 1503 / -100
• Display : 4.3” True colour TFT display with touch screen
• Temperature Range : -100°C to 40°C @20°C to 30°C Ambient
• Resolution : 0.01 °C
• Block Stability (30 mins) : Better than ± 0.03°C at full range
• Block Radial Uniformity : ± 0.05 °C at full range
• Temperature Read out : °C / °F (selectable)
• Heating time  :
• 25°C to 40°C : 30 min
• -100 to 25°C : 80 min
• Cooling Time: 25°C to -100°C : 85 min
• 40 to 25°C : 12 min
• Stabilization time  : 15 minutes
• Insert Dia. x Height: 30 x 120 mm
• Test sensor immersion depth: 115 mm
• Standard well holes in mm : Insert No. 1 : 5.1, 6.2, 6.2 & 8.1,
• Insert No. 2 : 6.2, 6.2 & 10.2
• Measure inputs: RTD – PT 100, PT 1000, TC – J, K, R, S, T, E, B, N , Analog – mA, V, mV, Ohms
• Cold junction Accuracy: ± 0.3°C
• Communication: RS 485 MODBUS
• Switch Test: Provided
• Sensor supply output: 24V DC ± 10% / 50mA max.
• Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption  : 500 VA
• Overall Dimension in mm : 356 x 210 x 534 (L x B x H)(Approx.)
• Instrument Weight :15.9 kg(with well insert)(Approx.)

Accessories :

• Basic Instrument
• Spare fuses
• Standard well insert – 2nos
• Well tool
• Instruction manual
• Mains card
• Traceable calibration certificate

Optional :

• Master Indicator with sensor
• Additional well insert
• Carrying case

The RPMC 1700 Series is high precision Tachometer calibrator, generates true reference rotation per minute (RPM). This calibrator uses “German technology” with high speed motor, high precision encoder and adoption of a new power full 32 bit CPU in control drive, featuring automated gain tuning function, stability, stable stop, rugged in use and many more. Due to it’s light weight and rugged Aluminium enclosure, it is suitable for in-house and on-site calibration of contact / non contact Tachometer, Tacho coil, Tacho generator, RPM indicator, RPM transmitter, Speedo meter, Proximity sensor, Stroboscope, etc,.

Features :

• 4.3” True colour TFT display with Touch screen
• Low noise
• Quick settling time
• Better stability Any odd value is settable for both contact & Non - contact RPM
• High resolution
• Ultra stable motor with high precision encoder and drive
• Direct drive shaft (there is no gear)
• Compact size

Specification:

• Model : RPMC 1700 - 2A
• Control Range :Contact : 0 to 6000 RPM Non Contact : 0 to 1,02,000 RPM
• Resolution : 0.1 RPM
• Display Stability : ± 0.1 RPM (for both Contact & Non Contact)
• Accuracy : Contact : ± 0.3 RPM, Non Contact : ± 5 RPM
• Display : 4.3” True colour TFT LCD Display with Touch screen
• Stability Time : Within 5 seconds
• Within 5 seconds : < 50dB
• Motor : Ultra stable motor with high resolution Encoder & Drive
• Power supply : 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption : 750 VA
• Outer Enclosure Construction : Aluminium Anodised
• Overall Dimension : 260mm L x 440mm W x 230mm H (Approx)
• Instrument Weight : 13 kg  (Approx.)

Accessories :

• Basic Instrument
• Spare fuses
• Instruction manual
• Mains card
• Traceable calibration certificate

Optional :

• Master Tachometer
• Additional Reflection stickers
• Carrying case

SSPRT is Highly Accurate Platinum Resistance Thermometer (PT 100) offer the temperature range of - 200 to 660ºC. SSPRT gives the benefit of high accuracy and low drift in a solid metal case. Wire wound resistance element give good stability with low temperature coefficient and high accuracy. SSPRT is constructed with a 6 mm outer diameter of Inconel sheath of high durability. SSPRT is available in different accuracies and length. A special powder mixture is filled into the sensor capsule to support the element from mechanical shocks. This model is supplied with 5 point calibration or fixed point ITS-90 Chart with smaller uncertainty.

Features:

• Temperature range from -200 to 660°C
• 6mm O.D & 450mm Length
• Outer sheath SS 316 / Inconel
• High accuracy & Stability
• Manufactured & tested under strict quality control standards
• Cycled to stability
• Fast response
• Low Drift
• ISO / IEC 17025 Accredited calibration certificate.

Specifications:

• Model:  SSPRT
• Type: PT 100
• Temperature Range: (a) -200 to 660°C (b) -80 to 600°C
• Temperature co-efficient: 0.00385 Ω / Ω /°C
• Stability: RO typical drift < 0.05°C after 100 hrs at 600 °C
• Thermal shock: RO typical drift < 0.01°C after 100 times from 25 to 600 °C
• Vibration: withstand 10 to 2000Hz at 20 G’s
• Recommended measuring current: 1mA
• Sheath Diameter: 6mm
• Sheath Length: 450mm
• Cable Length: 1500mm
• Outer Sheath: SS-316
• End Connection: Flying Lead, 4 wire
• Case dimension (Approx.): 80mm(H) x 750mm(W) x 80mm(D)
• Gross weight (Approx.): 2.75kg (6 lbs)
• Calibration Option: 5 point NABL (or) Fixed point ITS-90 Resistance Vs Temperature chart

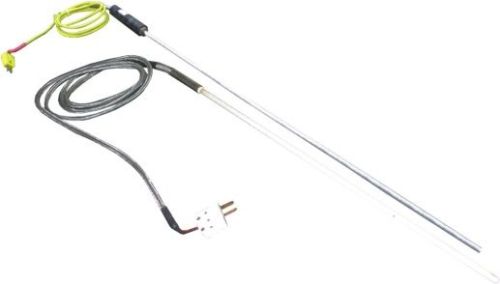

Reference standard Type ‘R’ & ‘S’ thermocouples are made from High purity reference grade platinum and platinum rhodium alloy. It covers Temperature range up to 1500°C. It is commonly used as reference standard to calibrate Industrial thermocouples. This sensors are assembled with 6mm OD, 450mm or 600mm long gas tight 99.7% high Alumina sheath. This type thermocouples, besides the low ageing drift, also offers the advantage of a low basic tolerance value.

Features:

• High Stability
• Low drift
• Long life
• Wide temperature range

Specification:

• Model: MTC-01
• Type: R, S
• Temperature Range:
• (a) 200 to 1500°C
• (b) 100 to 1200°C
• Accuracy: Class 1 (0.6°C or 0.1% of Temperature which ever is greater)
• Temperature Scale: ITS-90
• Sheath Material: K-99 grade ceramic
• Thermocouple wire dia: 0.5mm
• Probe dia & Length: 6mm OD & 450mm Length
• Cable Length: 1.5 meter long with male female, Miniature Omega connector
• Handle Dimension: 20mm OD & 100mm Length
• Calibration Certified: ISO/IEC 17025 Accredited 5 point

Features :

•  Large 2.8" TFT display with Touch screen
•  Ranges from -40 to 85 DegC / 0 to 100% RH / psychometric Converted Dew point
•  More resolution 0.01 DegC / 0.01 % RH
•  Accuracy at 23 °C± 5 °C : ± 0.2 °C / ±0.8 % RH
•  Inbuilt rechargeable polymer Li-ion battery
•  Alarm facility
•  Comfortable and anti-slip grip
•  Portable & Rugged with carrying case
•  ISO/IEC 17025 Accredited Calibration certificate
• Optional High temperature sensors available on request for temperature ranges -50 to 100 DegC & -100 to 200 DegC

Specifications:

• Model: HTD 200
• Display: 2.8” True colour TFT display with touch screen
• Range
  Temperature: -40 to 85 °C (T), Humidity: 0 to 100% RH (RH)
• Resolution: 0.01 °C / 0.01 % RH
• Accuracy at 23 °C± 5 °C : ± 0.2 °C / ±0.8 % RH
• Psychometric calculated indication: Dew / Frost point ( Dp / Fp )
  Wet Bulb Temperature ( Tw )
  Vapour partial pressure ( E )
  Vapour Saturation pressure ( Ew )
  Mixing ratio by weight (dry) ( g / kg )
  Enthalpy ( H ) ( KJ / kg )
  Specific Humidity (moisture) ( g / kg )
  Absolute Humidity (moisture) ( g / m³ )
  Volume mixing ratio (dry) ( ppm )
• Calculation method: WMO method
• Display refresh rate: 1 s (typical)
• Calibration : 5 point lookup table for both Temperature & Humidity
• Alarm: Audible & Visible user settable individual High & Low alarm set with alarm mode selection for all the 3 parameters
• Touch sound: On / Off option available
• Logging interval: 1 sec to 24 Hrs programmable
• Memory capacity: 4 to 32 GB Internal storage
• Data download: Via USB
• Battery charging port: USB C type
• Integrated battery: 3.7V / 10,000 mAh Inbuilt rechargeable polymer Li-ion battery
• Backlight time interval: 0(OFF) to 59 mins : 59 secs (user adjustable)
• Brightness adjustment: 10 to 100% (user adjustable)
• Application environment range: -10 to 60 °C / 0 to 100% RH (non condensed)
• Storage environment range: -10 to 45 °C / 10 to 90% RH
• Housing material: ABS with anti-slip grip silicon cover
• Protection class: IP40
• Overall Dimension in mm: 35 x 80 x 165 mm ( L x B x H)
• Instrument Weight: 560 g (Approx.)
