IR Temperature Calibrators

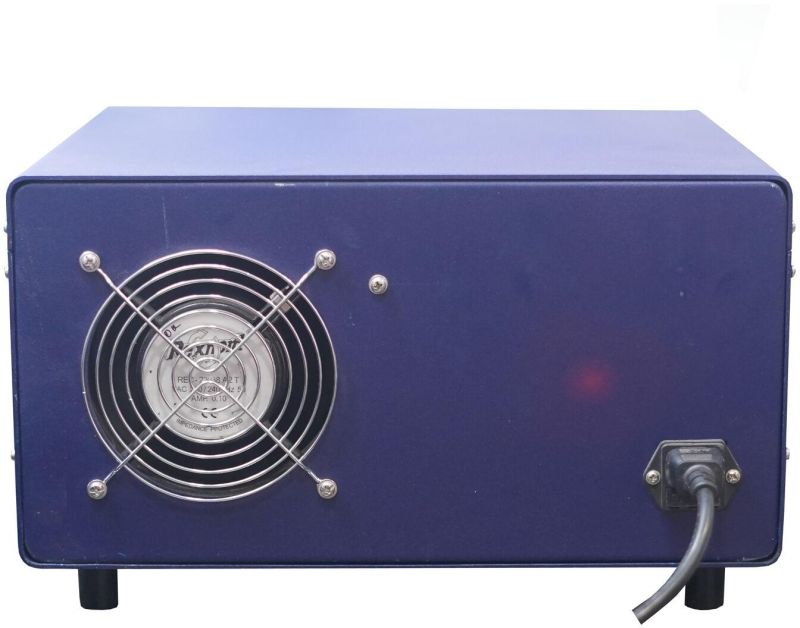

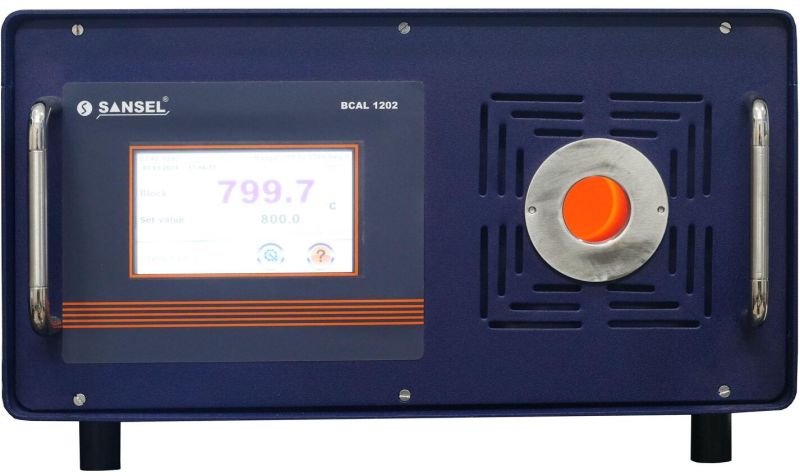

SANSEL Model BCAL 1202, Black body Calibrator is used to measure the accuracy and performance of non-contact Thermometers. Infra red thermometer & online pyrometer calibration is performed by comparison of the temperature measured by UUC and target temperature indicated by the calibrator or using standard pyrometer.

Focus the Unit Under Calibration (UUC) to be Calibrate to the target point given in BCAL 1202. Set the Temperature from the Touch screen display. Both True and set Temperature can be read. When Stabilization Occurs, Simply Read the Temperature and re-Calibrate the UUC.

Features :

• 4.3 inch True TFT display with Touch screen
• No liquids, safe dry calibration
• Range from 500 to 1200°C
• Resolution 0.1°C
• Micro controller based linearized high accuracy
• 25mm Aperture area
• Accurate better than ±1% of reading
• Portable, Rugged
• NABL traceable calibration certificate

Specifications :

• Model : BCAL 1202
• Display : 4.3 inch True TFT DISPLAY with touch screen
• Temperature Range : 500 to 1200°C
• Resolution : 0.1 °C
• Stability  : ± 0.2 °C
• Radial Uniformity : Better than ± 1% of reading
• Temperature Read out : °C
• Heating time : 60 min (Amb. to 1200 °C)
• Cooling time : 120 min (1200 to 100 °C)
• Stabilization time : 30 minutes
• Aperture area : 25 mm
• Emissivity : 0.950
• Power supply : 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption : 2200 VA
• Overall Dimension in mm : 350 x 352 x 210 (L x B x H)(Approx.)
• Instrument Weight : 12 kg(without carrying case)(Approx.)

Accessories :

• Basic Instrument
• Traceable calibration certificate
• Spare fuses
• Instruction manual
• Mains card

Optional :

• Master Pyrometer with traceability
• UUC fixing stand
• Carrying case

SANSEL Model BCAL 40, Black body Calibrator is used to measure the accuracy and performance of non-contact fever detection systems, like medical thermometer & image scanner. Now it is being used in relation to COVID-19 (corana virus). This Blackbody Source meets the demand for a simple cost effective solution but high accurate device for the calibration of thermal imager and IR thermometers that are used at temperature around that of the human body. Unlike Heat only devices, This model uses a solid state Heat & cool Technology, so that this can be generate both Heat and Cool. This having benefits to maintain the block temperature in different ambient temperature.

Features :

• 3.5 inch True TFT display with touch screen
• Range from 20 to 50°C / 68 to 122°F @ Body mode
• Range from 0 to 100°C / 32 to 212°F @ Surface mode @ Amb. 25°C
• Universal wide range power supply 90 to 260V AC / DC
• Extension tube gives better uniformity and avoid losses due to ambient temperature and air movement.
• Indicates both °C & °F at a time
• Stable to ± 0.03°C
• Accurate better than ± 0.3 °C
• Portable, Rugged & Onsite carryable

Technical Details

• Temperature Range Body Mode : 20 to 50 °C / 68 to 122 °F
• Surface Mode : 0 to 100 °C / 32 to 212 °F
• Resolution 0.01 °C
• Stability ± 0.03 °C
• Display 3.5 inch True TFT display with touch screen
• Accuracy ± 0.3 °C
• Temperature Read out °C & °F at a time
• Heating time 10 minutes (Amb. to 50 °C)
• Stabilization time 10 minutes
• Aperture area 25 mm
• Emissivity 0.950
• Power supply 90 to 260V AC / DC / 50/60 Hz
• Power Consumption less than 100 VA
• Overall Dimension in mm 210 x 210 x 140 (L x B x H)(Approx.)
• Instrument Weight 3.7 kg

Accessories :

• Basic Instrument
• Small extension tube
• Large extension tube
• Carry bag
• Traceable calibration certificate
• Spare fuses
• Instruction manual
• Mains card

Optional :

• Carrying case

Features :

• 4+4 Digit 7 segment LED Display
• Range from 50 to 500°C
• Resolution 0.1°C
• Accurate better than ± 0.5@100°C, ± 1.8@500°C
• Stable to ± 0.2°C
• Portable & Rugged

Speifications

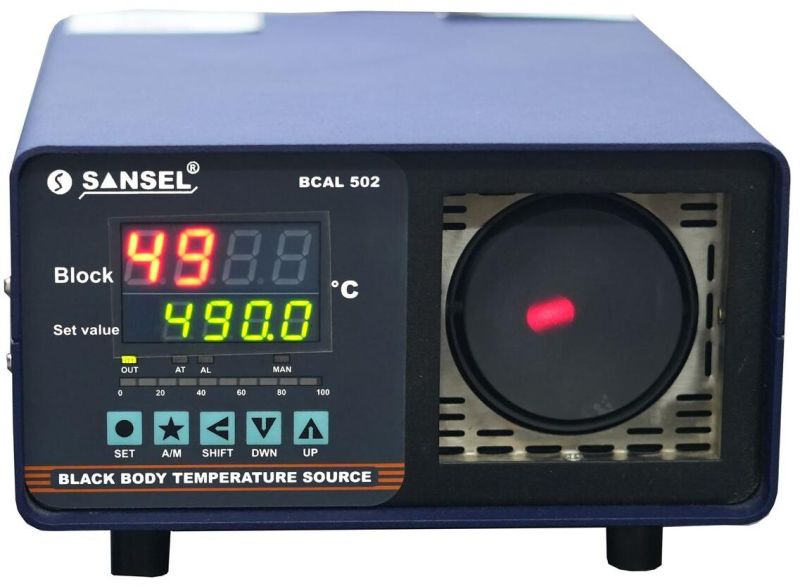

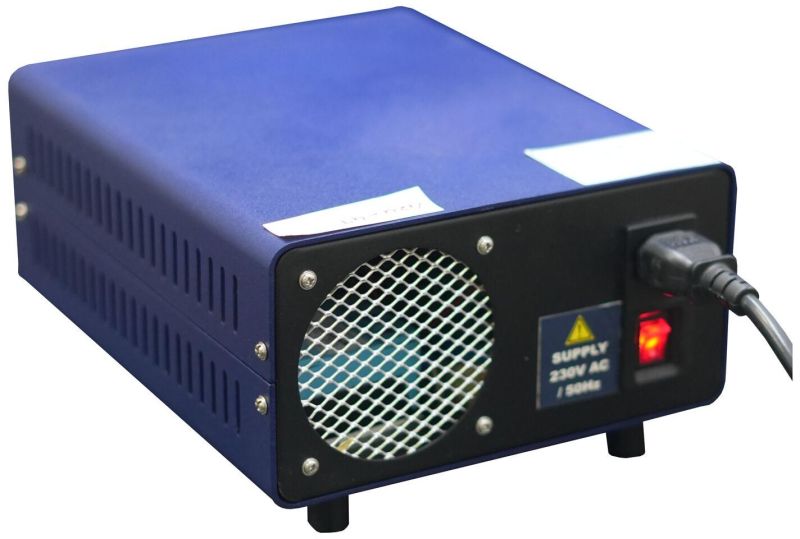

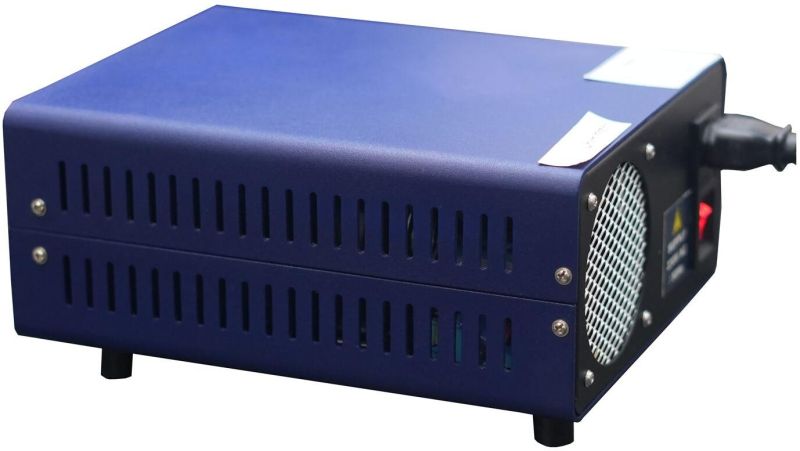

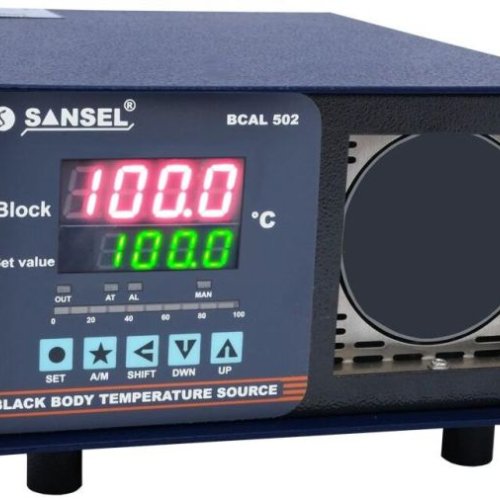

• MODEL BCAL : 502
• Display : 4+4 digit 7 segment LED Display
• Temperature Range : 50 to 500 °C
• Resolution : 0.1°C
• Stability : ± 0.2 °C
• Uniformity in aperture area: ± 0.5°C@50°C, ± 1.7@250°C , ± 2.5@500°C
• Heating Time (to Max) : 40 Minutes
• Cooling  Time (to Max) : 40 Minutes to 100°C
• Aperture area : 25 mm
• Emissivity : 0.950
• Power Supply : 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption : 500 VA
• Instrument Weight : 4.5 kg

Accessories :

• Basic Instrument
• Small extension tube
• Large extension tube
• Carry bag
• Traceable calibration certificate
• Spare fuses
• Instruction manual
• Mains card

Optional :

• Carrying case

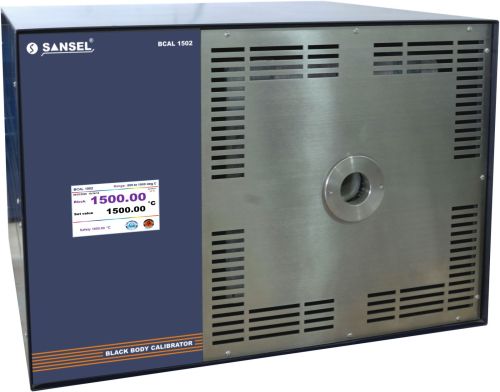

“SANSEL” Series BCAL 1502 is a Micro controller Based Precision Temperature Calibrators Generates True Reference Temperature. The Temperature Controller of the Calibrators Uses a Auto Tune PID Control Algorithm. Infra red thermometer & online pyrometer calibration is performed by comparison of the temperature measured by UUC and target temperature indicated by the calibrator or using standard pyrometer. Focus the Unit Under Calibration (UUC) to be Calibrate to the target point given in BCAL 1502. Set the Temperature from the Touch screen display. Both True and set Temperature can be read. When Stabilization Occurs, Simply Read the Temperature and re-Calibrate the UUC.

Features:

• 4.3 inch True TFT display with Touch screen
• Range from 500 to 1500°C
• Micro Controller Based Linearized
• High Accuracy
• Resolution 0.1°C
• Stable to ± 1°C
• Radial uniformity better than ± 1 % of reading
• Portable, Rugged
• No liquid, safe dry calibration
• NABL Traceable Calibration Certificate
• 30 mm Aperture area

Specifications:

• Model: BCAL 1502
• Display: 4.3 inch True TFT LCD Display with Touch screen
• Temperature Range: 500 to 1500 °C
• Resolution: 0.1°C
• Stability: ± 1°C
• Radial Uniformity: ± 1% of reading
• Bath Temperature Control: Digital Temperature Controller with Auto Tune PID Algorithm
• Temperature readout: °C
• Aperture area: 30mm
• Emissivity: 0.950
• Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption: 4 KVA
• Dimension (W*D*H) (Approx.): 580mm W x 450mm D x 390mm H
• Instrument Weight (Approx): 45 kg

Accessories :

• Basic Instrument
• Traceable calibration certificate
• Spare fuses
• Instruction manual
• Mains card

Optional :

• Master Pyrometer with traceability
• UUC fixing stand
• Carrying case
