Dry Block Temperature Calibrators
Leading Manufacturers, Exporters of High Temperature Dry Block Calibrator and Economy Dry Block Temperature Calibrators from Chennai.
| Business Type | Manufacturer, Exporter |
| Brand Name | SANSEL |
| Driven Type | Electric |
| Frequency | 50Hz |
| Display Type | Digital |
| Application | Industrial |
| Type | Automatic |
| Country of Origin | India |
| Resolution | 0.1°C |
| Stability | ± 0.5°C |
| Bath Temperature Control | Digital Temperature Controller with Auto Tune PID Algorithm |
| Product Code | TCAL 1500/1500 |
Preferred Buyer From
| Location | Worldwide |
Features :
- 4.3” True colour TFT display with Touch screen
- Temperature Range from 500°C to 1500°C
- Resolution 0.1°C
- Stability ± 0.2°C
- Interchangeable Multi hole thermo wells
- Silicon carbide Heating element
- Power requirement 230VAC / 50Hz / 3500VA
- Semi portable
- ISO / IEC 17025 Accredited calibration certificate
Specifications:
- Model: TCAL 1500 / 1500
- Display: 4.3 inch True TFT LCD Display with Touch screen
- Temperature Range : 500 to 1500 °C
- Resolution: 0.1°C
- Stability: ± 0.5°C
- Radial uniformity: Better than ± 0.5% of reading
- Bath Temperature Control: Digital Temperature Controller with Auto Tune PID Algorithm
- Heating time: 3 ½ Hrs ( Amb. to 1500 °C)
- Time to Stabilize: 30 minutes
- Well Dia: 50 mm
- Well Hole Depth: 240 mm
- Thermo Well Holes: 6, 8, 10, 14 in mm (Approx)
- PC Interface: RS 485 (optional)
- Power supply: 230V AC 50/60Hz (Optional 110V AC)
- Power Consumption: 3500 VA
- Dimension (L x W x H): 250 L X 410 W X 625 + 90 (wheel) H (mm)
- Instruments Weight: 57kg (without well insert) (Approx.)
| Business Type | Manufacturer, Exporter |
| Brand Name | SANSEL |
Preferred Buyer From
| Location | Worldwide |

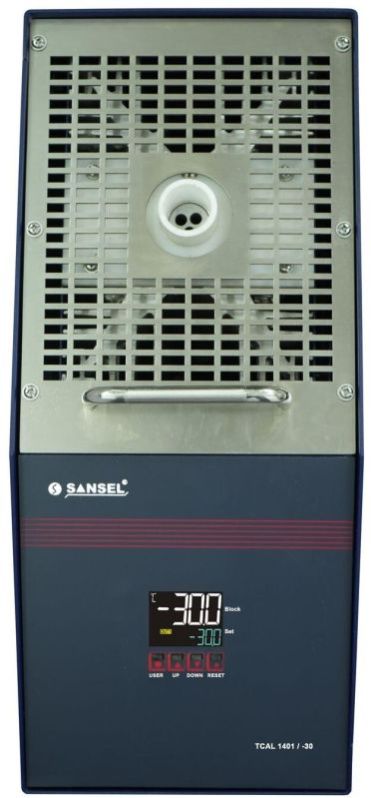

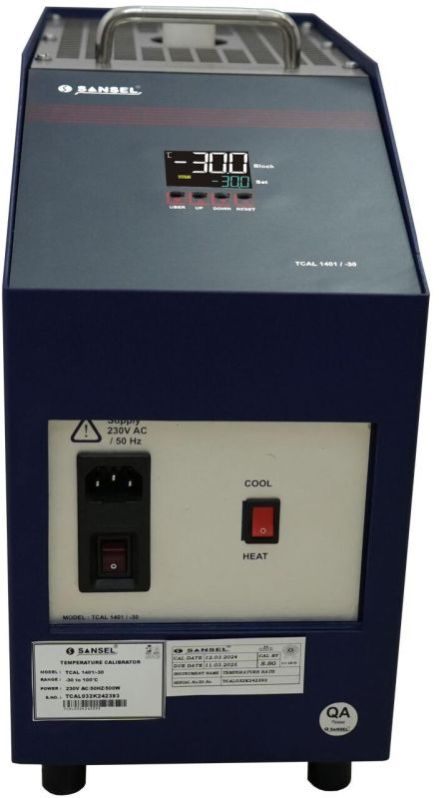

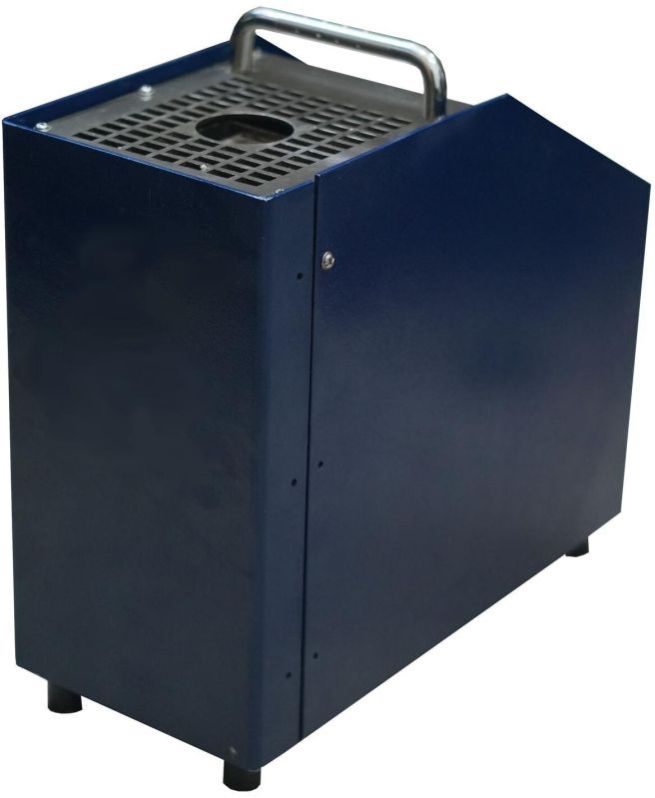

SANSEL Model TCAL 1401 / -30 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from -30* to 100°C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Food, Pharmaceutical and all types of process industries. Having it’s advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / -30 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 16mm). Additional Inserts(optional) with special drillings are available to order.
Features :
- High Bright 4 + 4 digit 7 seg LCD Display with 4 keys
- Portable & Rugged
- Range from -30* to 100°C
- No Liquids, Safe dry Calibration
- Micro Controller Based Linearized High Accuracy
- Stable to ± 0.1°C
- Axial + Radial uniformity - better than ± 0.15°C
- Inter changeable insert to suit different diameter sensor - up to 22 mm
- ISO / IEC 17025 Standard Accredited Calibration Certificate
Accessories
- Basic Instrument
- Standard well insert
- Well tool
- Spare fuses
- Instruction manual
- Mains card
- Carry bag
- Traceable calibration certificate
Optional
- Master Indicator with sensor
- Additional well insert
- Carrying case
