Analytical Instruments

The most time-consuming part of carrying out a microbial count is the actual counting process on petri dishes. Colony counters facilitate this task and as a result are essential in every bacteriological laboratory. Their particular advantages are the easy, rapid and reliable counting of bacterial colonies with very simple handling. SANSEL colony counter Model CC 100 is easy to use and allows fatigue-free and safe work thanks to its problem-free counting mechanism: Marking the colonies on the petri dish with the marker pen activates the counter.

Fearures :

• Long Life Electronic Pen
• 110 mm Dia Magnifying Glass
• Audible Buzzer Indication for Each Count
• Uniform Glare free illumination
• Wolffhugel Glass Grid with Focusing Facility
• x 1.7 Surface Magnification
• 230V AC Operating Supply

Accessories :

• Basic Instrument
• Magnifier
• Magnifier stand set
• Electronic Marker Pen
• Instruction manual

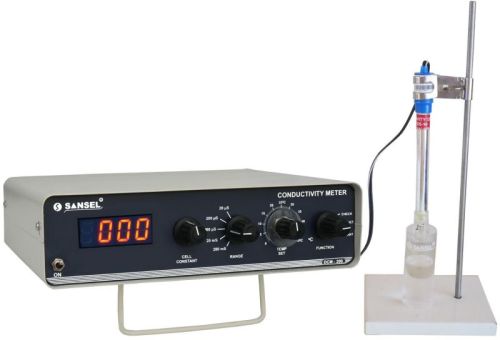

SANSEL make digital Conductivity(EC) meter DCM 200 is extremely useful for fast and accurate determination of Conductivity in a liquid. The use of solid state technology and IC circuitry makes this instrument versatile and reliable. The multi position selector switch quickly sets the digital display to the desired test range. The instrument is ideal for testing of natural water, drinking water, waste water, brine solution, sea water and soluble salts, etc.,

Features :

• Highly reliable and accurate meter.
• Very responsive Platinum Conductivity cell.
• Latest ICs used for quick sensing and high accuracy.
• Input is compactable for any type of electrode(1.0 cell constant).
• Cell adjustment controls are provided on front of instrument.
• Check adjustment controls are provided on rear of instrument.

Accessories :

• Basic Instrument
• Platinum Conductivity Cell
• Electrode Clamp & stand set
• Instruction manual

Optional

• Imported certified Standard Solution (Extra charge)

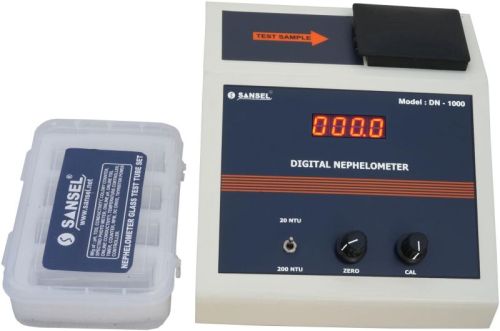

Clarity of water is extremely important in products destined for human consumption. Suspension free water is also considered necessary for industries manufacturing beverage, food products etc. Similarly, minimum limits of turbidity are required to be observed in drinking water & sewage disposals. SANSEL Digital Nephelometer Model DN 1000 are ideal instruments for measurement of suspensions. They consist of a light source focused on a test tube containing the sample solution under test. The light, reflected at right angle to the focused light by the suspension in the solution, is detected by the photo electric detector, amplified and displayed on a 3½ digit LED display.

Features :

• 3 ½ digit 7 segment LED
• 2 Range Selection
• Light Emitting Diode (LED) Light Source
• Zero & SPAN Calibration From Front Panel
• Compact Size
• Power ON/OFF Indicating Switch
• 230V AC Operating Supply

Accessories :

• Basic Instrument
• Glass Test Tube – 4 nos
• Power cord
• Instruction manual

SANSEL make digital pH meter is a precise and rugged instrument Carefully designed for the most accurate measurement of pH in Laboratories and industries. The instruments are completely IC version using “MOFSET” input “OP - AMP” and CMOS ICS. It is a met al cabinet of elegant shape. All the controls that are in regular use have been incorporated in the front panel for operational easy. The instrument is capable of measuring millivolts with auto. Polarity for redox potentials and potentiometric tirations. This instrument Operates from 180V to 230V AC 50Hz.

Features

• Highly reliable and accurate meter.
• Very responsive combination glass pH electrode.
• Latest ICs used for quick sensing and high accuracy.
• Adjustable temperature compensation.
• Input is compactable for any type of electrode.
• SLOPE 4.00 and CAL 7.00 adjustment controls are provided on front for recalibration of instrument.

Accessories

• Basic Instrument
• Combined Electrode
• 4 & 7 pH standard tablet with container
• Electrode Clamp & stand set
• Instruction manual

Optional

• Imported certified Standard buffer Solution (Extra charge)
• Epoxy body imported Combined Electrode (Extra charge)
• 4 & 7 pH standard tablet with container (Extra charge)

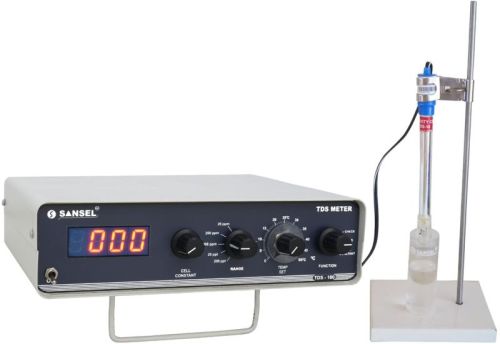

A large number of salts such as carbonates, bicarbonates, chloride, sulphates, phosphates & nitrates of calcium, magnesium, sodium, potassium, iron and manganese etc., are found dissolved in natural water. Similarly coastal marine water contains substantial quantity of these salts. A high content of dissolved solids elevates the density of water, influences Osmoregulation of fresh water organism and reduces solubility of gases thereby reducing the utility of water for drinking, irrigation and industrial purposes. Therefore, determination of Total Dissolved solids is one of the important parameters in water analysis. SANSEL make digital TDS meter TDS 100 is extremely useful for fast and accurate determination of Total Dissolved Solids in a liquid. The use of solid state technology and IC circuitry makes this instrument versatile and reliable. The multi position selector switch quickly sets the digital display to the desired test range. The instrument is ideal for testing of natural water, drinking water, waste water, brine solution, sea water and soluble salts, etc.,

Features :

• Highly reliable and accurate meter.
• Very responsive Platinum Conductivity cell.
• Latest ICs used for quick sensing and high accuracy.
• Input is compactable for any type of electrode(1.0 cell constant).
• Cell adjustment controls are provided on front of instrument.
• Check adjustment controls are provided on rear of instrument

Accessories :

• Basic Instrument
• Platinum Conductivity Cell
• Electrode Clamp & stand set
• Instruction manual

Optional

• Imported certified Standard Solution (Extra charge)

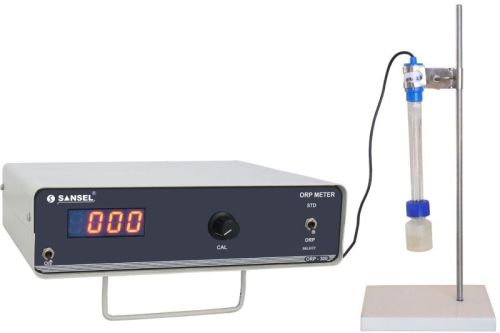

SANSEL make digital ORP(Oxidation Reduction Potential)/ Redox meter is a precise and rugged instrument Carefully designed for the most accurate measurement of pH in Laboratories and industries. The instruments are completely IC version using “MOFSET” input “OP - AMP” and CMOS ICS. It is a met al cabinet of elegant shape. All the controls that are in regular use have been incorporated in the front panel for operational easy. The instrument is capable of measuring millivolts with auto. Polarity for redox potentials and potentiometric tirations. This instrument Operates from 180V to 230V AC 50Hz.

Features :

• Highly reliable and accurate meter.
• Very responsive combination glass ORP electrode.
• Latest ICs used for quick sensing and high accuracy.
• Input is compactable for any type of electrode.
• CAL adjustment controls are provided on front for recalibration of instrument.

Accessories :

• Basic Instrument
• ORP Electrode
• Electrode Clamp & stand set
• Instruction manual

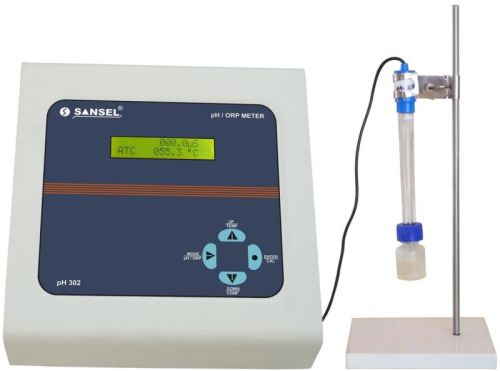

SANSEL pH 302 Model pH / ORP meter that offer high Accuracy pH, ORP and Temperature Measurement in a Single Unit. It has 16 Character x 2 Line LCD Display and read pH / ORP and Temperature at a time with Engineering Unit. These Technologically advanced Meter build with easy Calibration Steps. Automatic and Manual Temperature Compensation is Selectable for pH Parameter. Two Point Calibration is provided for ORP Measurement.

Features :

• Micro Controller Based High Accuracy
• Three Parameter in One Unit
• Quick and Easy Calibration, Upto 3 Calibration Points with Auto Buffer Recognition.
• Selectable Automatic / Manual Temperature Compensation.
• Non-Volatile Memory to Hold Your Setting and Calibration Points, When Power is OFF.
• ombined Electrode for pH with BNC attachment
• Special Temperature sensor for Automatic Temperature Compensation(ATC)

Specifications

• Range 0 to 14 pH / -1999 to +1999 mV / 0 - 150 °C
• Input Impedance > 10¹² Ohms
• Resolution 0.01 pH / 1 mV / 0.1 °C
• Temperature Compensation 0 to 50 °C Manual / Automatic
• Display 16 character x 2 line LCD with Backlight
• Accuracy ± 0.01 pH ± 1 digit / ± 1 mV ± 1 digit / ± 0.5 °C ± 1 digit
• Electrode Combined pH Electrode with BNC attachment
• Temperature Sensor Provided with 3 pin Female socket
• pH / ORP Input connection BNC socket
• Temperature connection 3 pin male socket
• Operating Environment 0 to 50 °C / 20 to 95 % RH non condensing
• Power supply 230V AC / 50 Hz ± 10%
• Overall Dimension in mm 185 x 185 x 80 (L x B x H)
• Instrument Weight 1.7 kg(Approx.)

Accessories

• Basic Instrument
• Combined pH Electrode
• 4 & 7 pH standard tablet with container
• Electrode Clamp & stand set
• Instruction manual

Optional

• Platinum ORP electrode (Extra charge)
• Imported certified Standard buffer Solution (Extra charge)
• Epoxy body imported Combined Electrode (Extra charge)
• 4 & 7 pH standard tablet with container (Extra charge)

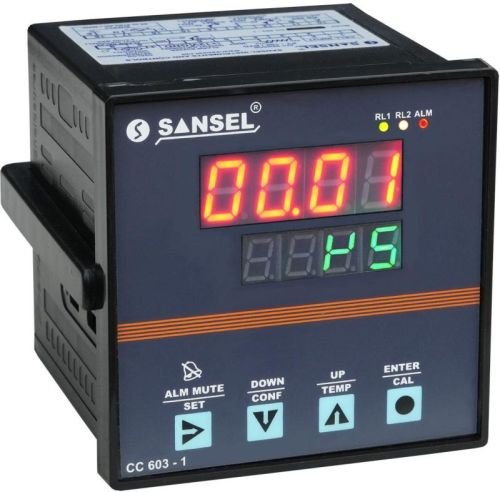

The CC 603 - 1 series of Conductivity Controller and Transmitter provides a reliable method of Monitoring, Controlling & Transmitting 4 - 20mA / RS 485 MODBUS RTU Communication for Interfacing to PLC, Data logger, HMI, etc.,. This product is suitable to measure Conductivity in water treatment, Electrolytic water cleaning, Chemical Industries, Food Process, Waste Water treatment, Textile Industries & Neutralization process, etc. This Conductivity Controller & Transmitter can Measured using Industrial Conductivity Sensors, Temperature can be measured using temperature
sensor.

Features :

• Economical, Easy to Calibrate and Setup
• User selectable 5 ranges from 1μS to 200mS
• High Accuracy
• Programmable Auto / Manual Temperature Compensation
• Optional Isolated RS 485 communication with MODBUS RTU protocol
• Optional Galvanically Isolated 4 - 20mA Output
• Adjustable Cell Constant for particular ranges
• Manual single or 2 point Calibration
• 2 Relay Outputs with Configurable individual H / L Setting with 6 relay status
• Optional audible inbuilt buzzer Output
• Universal Supply Voltage 90 to 270V AC / DC

Specfications :

• Display 4 + 4 Digit 0.5” & 0.39” 7 Seg RED LED Display
• Cell Constant * 0.01 / 0.1 / 1(user selectable depends on range*)
• Range (any one) 1 - 20μS, 5 - 200μS, 10 to 2000μS, 1 to 20mS, 5 to 200mS
• Resolution 0.01μS to 0.1mS (depends on range)
• Temp. Compensation Manual / Automatic (-20.0 to +150.0ºC)
• Temp. Sensor RTD - PT 100 (3 wire)
• Temp. Coefficient 0 to 3 % / ºC(user adjustable)
• Electrode Input Conductivity cell on rear panel
• Accuracy ± 1 % of range ± 1 digit
• Set Point - 1 & 2 Two Set Point with 6 Relay Status Selectable
• Relay Output Relay - 1 for Setpoint - 1, Relay - 2 for Setpoint - 2 with 5A Rating
• Relay Hysterisis 0 to 500 counts (user adjustable)(only for High & Low control modes)
• Relay Cyclic delay 0 to 100 seconds (user adjustable)(only for High & Low control modes)
• Alarm Output(optional) inbuilt audible buzzer with front key reset
• Optional Re. Tx. output Galvanically Isolated 4 - 20 mA
• Optional Comm. output Isolated RS 485
• Comm. Protocol MODBUS RTU
• Operating Environment -10 to 50ºC / 10 to 95 % RH Non Condensing
• Power Supply 90 to 270V AC / DC 50Hz
• Dimension 96 x 96 x 85 mm.
• Cutout Dimension 92 x 92 mm
• Weight 500 grams (Approx.)

The pH 600 - 1 series of pH Controller and Transmitter provides a reliable method of Monitoring, Controlling & Transmitting 4 - 20mA / RS 485 MODBUS RTU communication for Interfacing to PLC, Data logger, HMI, etc.,. This product is suitable to measure pH in water treatment, Electrolytic water cleaning, Chemical Industries, Food Process, Waste Water treatment, Textile Industries & Neutralization process, etc.,. This pH Controller & Transmitter can Measured using Industrial Combined pH Sensors, Temperature can be measured using temperature sensor.

Features :

• Economical, Easy to Calibrate and Setup
• Wide range from -2 to 16 pH
• High Accuracy
• Programmable Auto / Manual Temperature Compensation
• Optional Isolated RS 485 communication with MODBUS RTU protocol
• Optional Galvanically Isolated 4 - 20mA Re Trans. Output
• Very High Input Impedance >10 Ohms
• User selectable Automatic and Manual calibration
• User selectable 2 or 3 point buffer calibration
• 2 Relay Outputs with Configurable individual H / L Setting with 6 relay status
• Optional audible inbuilt buzzer Output with front key reset
• Universal Supply Voltage 90 to 270V AC / DC

Specifications :

• Display 4 + 4 Digit 0.5” & 0.39” 7 Seg RED LED Display
• Input Impedance >1012 Ohms
• Range -2 to 16 pH
• Resolution 0.01 pH
• Temperature sensor RTD - PT 100 (3 wire)
• Temp. Compensation Manual / Automatic (-20.0 to +150.0ºC)
• Electrode Input Combined Electrode with BNC Attachment
• Accuracy ± 0.01 pH ± 1 digit
• Set Point - 1 & 2 Two Set Point with 6 Relay Status Selectable
• Relay Output Relay - 1 for Setpoint - 1, Relay - 2 for Setpoint - 2 with 5A Rating
• Relay Hysterisis 0 to 5 pH (user adjustable)(only for High & Low control modes)
• Relay Cyclic delay 0 to 100 seconds (user adjustable)(only for High & Low control modes)
• Alarm Output(optional) inbuilt audible buzzer with front key reset
• Optional Re. Tx. output Galvanically Isolated 4 - 20 mA
• Optional Comm. output Isolated RS 485
• Comm. Protocol MODBUS RTU
• Operating Environment -10 to 50ºC / 10 to 95 % RH Non Condensing
• Power Supply 90 to 270V AC / DC 50Hz
• Dimension 96 x 96 x 85 mm.
• Cutout Dimension 92 x 92 mm
• Weight 500 grams (Approx.)

Features :

• pH Transmitter with ATC (Automatic temperature Compensation) in IP-65 Housing
• 2 Wire 4~20mA Isolated Output
• Galvanic Isolation : 1500VDC (Input / Output)
• Large LCD Display

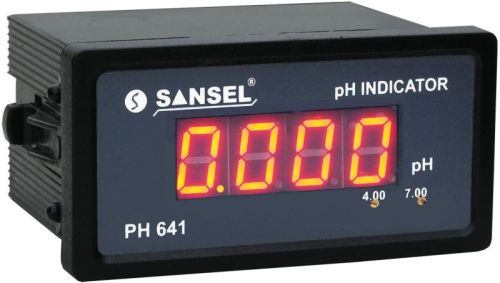

SANSEL make online pH indicator Model pH 641 is a precis, rugged and weather proof instrument carefully designed for the most accurate measurement of pH in all industries. These instruments are completely IC version using “MOSFET” input “OP -AMP” and CMOS ICs. This instrument is a panel mountable with a compact standard size of 48 x 96 x 65mm with front end potmeter type easy adjustable 4pH & 7pH buffer calibration option. This instrument operates from 90V to 270V AC / DC ,50Hz.

Features :

• 3½ Digit seven segment LED display
• High accuracy
• Easy front end two point buffer calibration
• Very high input impedance > 10¹² ohms
• Compact size
• Rugged and weather proof enclosure
• Variety of electrode fittings
• Universal Supply voltage 90 to 270V AC / DC,50 Hz

Accessories

• Basic Instrument
• Panel mount Clamp set
• Instruction manual

Optional

• Combined Electrode with PP adapter for easy pipe line fitting
• 4 & 7 pH standard tablet with container
• Imported certified Standard buffer Solution (Extra charge)
• Pipe line Flow Through assembly (Extra charge)
• “L” type PVC setup for electrode for Tank installation (Extra charge)

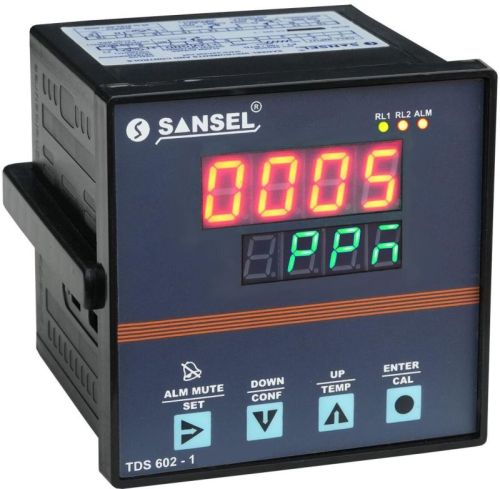

The TDS 602 - 1 series of TDS Controller and Transmitter provides a reliable method of Monitoring, Controlling & Transmitting 4 - 20mA / RS 485 MODBUS RTU Communication for Interfacing to PLC & Data logger. This product is suitable to measure TDS in water treatment, Electrolytic water cleaning, Chemical Industries, Food Process, Waste Water treatment, Textile Industries & Neutralization process, etc.,. This TDS Controller & Transmitter can Measured using Industrial TDS Sensors, Temperature can be measured using temperature sensor.

Features :

• Economical, Easy to Calibrate and Setup
• User selectable 6 ranges from 1ppm to 200ppt
• High Accuracy
• Programmable Auto / Manual Temperature Compensation
• Optional Isolated RS 485 communication with MODBUS RTU protocol
• Optional Galvanically Isolated 4 - 20mA Re Trans. Output
• Adjustable Cell Constant for particular ranges
• Manual single or 2 point Calibration
• 2 Relay Outputs with Configurable individual H / L Setting with 6 relay status
• Optional audible inbuilt buzzer Output with Front key reset
• Universal Supply Voltage 90 to 270V AC / DC

Specification :

• Display 4 + 4 Digit 0.5” & 0.39” 7 Seg RED LED Display
• Cell Constant * 0.01 / 0.1 / 1(user selectable depends on range*)
• Range(any one) 1 - 20ppm, 5 - 200ppm, 10 to 2000ppm, 1 to 20ppt, 5 to 200ppt
• Resolution 0.01ppm to 0.1ppt (depends on range)
• Temp. Compensation Manual / Automatic (-20.0 to +150.0ºC)
• Temp. Sensor RTD - PT 100 (3 wire)
• Temp. Coefficient 0 to 3 % / ºC(user adjustable)
• Electrode Input Conductivity cell on rear panel
• Accuracy ± 1 % of range ± 1 digit
• Set Point - 1 & 2 Two Set Point with 6 Relay Status Selectable
• Relay Output Relay - 1 for Setpoint - 1, Relay - 2 for Setpoint - 2 with 5A Rating
• Relay Hysterisis 0 to 500 counts (user adjustable)(only for High & Low control modes)
• Relay Cyclic delay 0 to 100 seconds (user adjustable)(only for High & Low control modes)
• Alarm Output(optional) inbuilt audible buzzer with front key reset
• Optional Re. Tx. output Galvanically Isolated 4 - 20 mA
• Optional Comm. output Isolated RS 485
• Comm. Protocol MODBUS RTU
• Operating Environment -10 to 50ºC / 10 to 95 % RH Non Condensing
• Power Supply 90 to 270V AC / DC 50Hz
• Dimension 96 x 96 x 85 mm.
• Cutout Dimension 92 x 92 mm
• Weight 500 grams (Approx.)

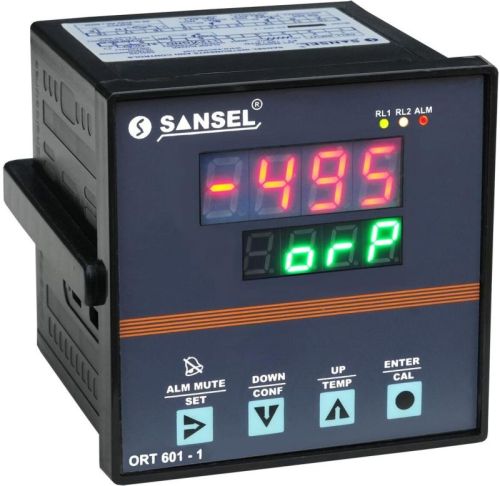

The ORT 601 - 1 series of ORP Controller and Transmitter provides a reliable method of Monitoring, Controlling & Transmitting 4 - 20mA / RS 485 MODBUS RTU Communication for Interfacing to PLC, Data logger, HMI, etc.,.This product is suitable to measure ORP in water treatment, Electrolytic water cleaning, Chemical Industries, Food Process, Waste Water treatment, Textile Industries & Neutralization process, etc.,. This ORP Controller & Transmitter can Measured using Industrial Platinum
ORP Sensor.

Features :

• Economical, Easy to Calibrate and Setup
• Wide range from -1999 to 1999 ORP
• High Accuracy
• Optional Isolated RS 485 communication with MODBUS RTU protocol
• Optional Galvanically Isolated 4 - 20mA Output
• Very High Input Impedance >10 Ohms
• User selectable Single or 2 point calibration
• 2 Relay Outputs with Configurable individual H / L Setting with 6 relay status
• Optional audible inbuilt buzzer Output with front key reset
• Universal Supply Voltage 90 to 270V AC / DC

Specifications :

• Display 4 + 4 Digit 0.5” & 0.39” 7 Seg RED LED Display
• Input Impedence >1012 Ohms
• Range -1999 to +1999 ORP
• Resolution 1 ORP
• Electrode Input Platinum Electrode with BNC Attachment
• Accuracy ± 1 ORP ± 1 digit
• Set Point - 1 & 2 Two Set Point with 6 Relay Status Selectable
• Relay Output Relay - 1 for Setpoint - 1, Relay - 2 for Setpoint - 2 with 5A Rating
• Relay Hysterisis 0 to 500 ORP (user adjustable)(only for High & Low control modes)
• Relay Cyclic delay 0 to 100 seconds (user adjustable)(only for High & Low control modes)
• Alarm Output(optional) inbuilt audible buzzer with front key reset
• Optional Re. Tx. output Galvanically Isolated 4 - 20 mA
• Optional Comm. output Isolated RS 485
• Comm. Protocol MODBUS RTU
• Operating Environment -10 to 50ºC / 10 to 95 % RH Non Condensing
• Power Supply 90 to 270V AC / DC 50Hz
• Dimension 96 x 96 x 85 mm.
• Cutout Dimension 92 x 92 mm
• Weight 500 grams (Approx.)

SANSEL make TDS indicator is extremely useful for fast and accurate determination of total dissolved solids in a liquid. The use of solid state technology and IC circuitry makes this instrument versatile and reliable. The factory set fixed range is available. The instrument is ideal for testing of natural water,drinking water,waste water,brine solution, sea water and soluble salts, etc.,

Features :

• 3½ Digit seven segment LED
• Wide ranges
• Front Zero & Span calibration
• ± 1% of FS accuracy
• Compact size
• Easy mount
• Variety of electrode fittings
• 90 to 270V AC / 50Hz operating supply
