Digital Nephelometer
| Business Type | Manufacturer, Exporter |
| Brand Name | SANSEL |
Preferred Buyer From
| Location | Worldwide |

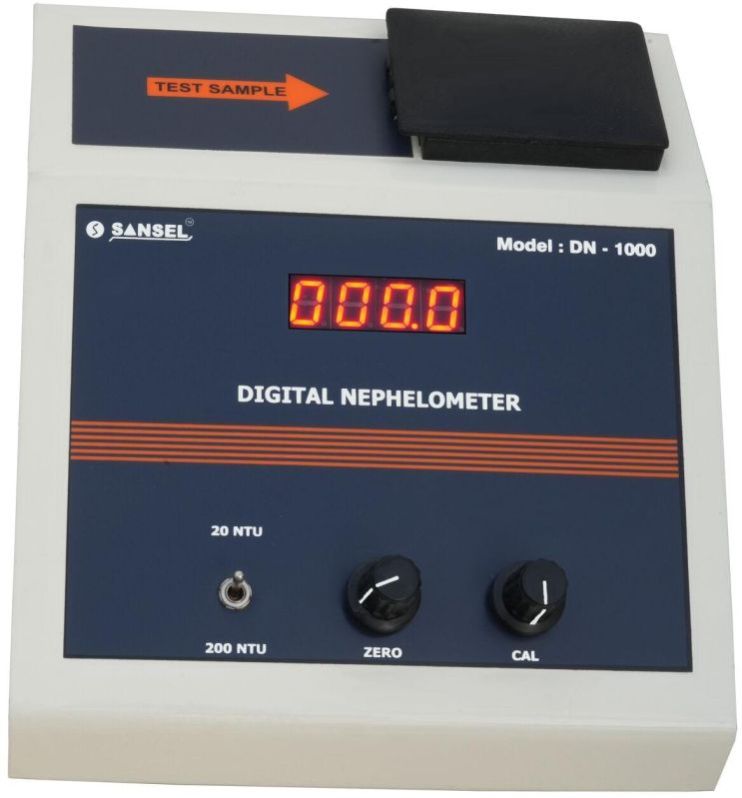

Clarity of water is extremely important in products destined for human consumption. Suspension free water is also considered necessary for industries manufacturing beverage, food products etc. Similarly, minimum limits of turbidity are required to be observed in drinking water & sewage disposals. SANSEL Digital Nephelometer Model DN 1000 are ideal instruments for measurement of suspensions. They consist of a light source focused on a test tube containing the sample solution under test. The light, reflected at right angle to the focused light by the suspension in the solution, is detected by the photo electric detector, amplified and displayed on a 3½ digit LED display.
Features :
- 3 ½ digit 7 segment LED
- 2 Range Selection
- Light Emitting Diode (LED) Light Source
- Zero & SPAN Calibration From Front Panel
- Compact Size
- Power ON/OFF Indicating Switch
- 230V AC Operating Supply
Accessories :
- Basic Instrument
- Glass Test Tube – 4 nos
- Power cord
- Instruction manual
Specifications
| Model | DN 1000 |
| Range | 0 to 19.9 & 199.9 NTU |
| Resolution | 0.1 NTU |
| Detector | Photo Diode |
| Display | 0.5” 3 ½ Digit 7 segment Red LED |
| Test Tube | 30mm Dia Clear Glass Test tube x 4 nos |
| Light Source | High Intensity 5mm White LED |
| Operating Environment | 0 to 50 °C / 20 to 95 % RH non condensing |
| Power supply | 230V AC / 50 Hz ± 10% |
| Overall Dimension in mm | 220 x 200 x 110 (L x B x H) |
| Instrument Weight | 2 kg(Approx.) |
