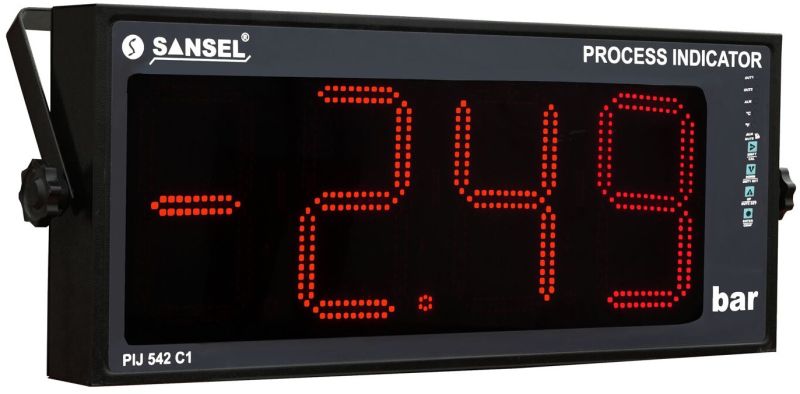

8” 4 DIGIT JUMBO PROCESS INDICATOR Model: PI 541 C1

Link Copied
Business Type Manufacturer, Exporter
Brand Name SANSEL
Color Black
Product Code PI 542 C1
Click to view more

Product Details

Delivery Time
28 days
  • Model: PIJ – 542 C1
  • Display: 2” or 4” or 8” 4 Digit 7 segment RED LED*
  • Accuracy: ± 0.1 % of FS
  • Analog inputs: 4 – 20 mA, 0 - 20 mA, 0 to 70 mV, 0 to 10 V DC, 0 – 400 Ω (H & L Limit Programmable)
  • Temperature inputs: RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E
  • Analog display range: -1999 to 9999 (H & L Limit programmable)
  • Temperature range (H & L Limit programmable):
    RTD - PT 100 (-199.9 to 850.0°C / -199.9 to 999.9 °F)
    TC - J (- 200 to 1200°C / -328 to 2192°F)
    TC - K (- 200 to 1372°C / -327 to 2501°F)
    TC - R (- 40 to 1768°C / -40 to 3214°F)
    TC - S (- 40 to 1768°C / -40 to 3214°F)
    TC - T (- 200 to 400°C / -328 to 752°F)
    TC - B (300 to 1820°C / 572 to 3308°F)
    TC - N (-200 to 1300°C / -327 to 2372°F)
    TC - E ( -200 to 999.9°C / -327 to 1832°F)
  • Unit selection: °C / °F ( for RTD & TC inputs)
  • Analog input display resolution: 0.001 / 0.01 / 0.1 / 1 (Selectable)
  • Temperature resolution: 0.1 / 1 °C / °F (optional 0.01 for RTD - PT 100 I/P up to 99.99 °C Factory presetable)
  • Filter constant: 1 – 100% (Adjustable)
  • Display hold option: Peak, hold & average (any one selectable)
  • Hold delay: 0 - 999 sec (selectable)
  • Relay Output (optional): 2 Relay (5A rated) with 6 Relay Status Selection, Adjustable, Hysteresis, Cyclic Delay
  • Re Transmission (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
  • PC communication (optional): RS 485 (2 wire) MODBUS RTU protocol
  • PC interface software: Optional
  • Sensor Supply (external): 24 V DC ±10% @ 100 mA
  • Power supply: 230 V AC / 50 Hz
  • Overall dimension: 760 x 320 x 85 (or) 1125 x 320 x 85 (L x H x D) in mm (Approx.)
  • Housing : MS Powder coating
  • Mounting: Wall or sealing with 360 º rotatable clamp
  • Operating environment: 0 - 50°C / 5 to 95% RH Non condensing
  • Weight (Approx.): 7.5 (or) 8.5 kg
