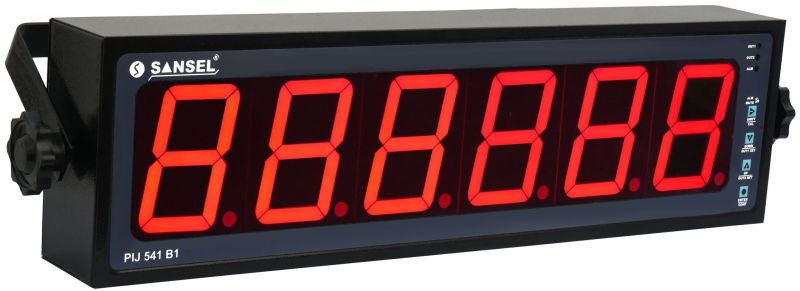

4” 6 DIGIT JUMBO PROCESS INDICATOR PIJ - 541 B1

Descriptions:

The PIJ 541 B1 Jumbo display universal input process indicator is incorporated with high accuracy 24bit ADC , 6-digit industrial display indicator accept any one input from Thermocouple, RTD, mV, mA and Resistance, with the capability of measuring and indicating temperature, pressure, flow, level and other process variables. The standard PIJ 541 B1 provides a retransmission output, alarm relay outputs and RS-485 MODBUS communications can be added to suit your applications. The input and output are easily configurable by front panel keys. The PIJ 541 B1 has been designed to provide reliable indications in the harshest environments.

• Model: PIJ – 541 B1
• Display: 2” or 4” or 8” 6 Digit 7 segment RED LED*
• Accuracy: ± 0.1 % of FS
• Analog inputs: 4 – 20 mA, 0 - 20 mA, 0 to 70 mV, 0 to 10 V DC, 0 – 400 Ω (H & L Limit Programmable)
• Temperature inputs: RTD - PT 100, PT 1000, Thermocouple - J, K, R, S, T, B, N, E
• Analog display range: -199999 to 199999 (H & L Limit programmable)
• Temperature range (H & L Limit programmable):
  RTD - PT 100 (-199.99 to 850.00°C / -327.5 to 1562.0 °F)  RTD - PT 1000 (-50.0 to 400.0°C / -58.0 to 752.0 °F)  TC - J (- 200 to 1200°C / -328 to 2192°F)

  TC - K (- 200 to 1372°C / -327 to 2501°F)
  TC - R (- 40 to 1768°C / -40 to 3214°F)
  TC - S (- 40 to 1768°C / -40 to 3214°F)
  TC - T (- 200 to 400°C / -328 to 752°F)
  TC - B (300 to 1820°C / 572 to 3308°F)
  TC - N (-200 to 1300°C / -327 to 2372°F)
  TC - E ( -200 to 1000°C / -327 to 1832°F)

• Unit selection: °C / °F ( for RTD & TC inputs)
• Analog input display resolution: 0.0001 / 0.001 / 0.01 / 0.1 / 1 (Selectable)
• Temperature resolution: 0.1 / 1 °C / °F (optional 0.01 for RTD - PT 100 I/P up to 99.99 °C Factory presetable)
• Filter constant: 1 – 100% (Adjustable)
• Display hold option: Peak, hold & average (any one selectable)
• Hold delay: 0 - 999 sec (selectable)
• Relay Output (option
• al): 2 Relay (5A rated) with 6 Relay Status Selection, Adjustable, Hysteresis, Cyclic Delay
• Re Transmission (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
• PC communication (optional): RS 485 (2 wire) MODBUS RTU protocol
• PC interface software: Monitoring, Data logging, Report & Graph (Optional)
• Sensor Supply (external): 24 V DC ±10% @ 100 mA
• Power supply: 230 V AC / 50 Hz
• Overall dimension: 611 x 171 x 85 (L x H x D) mm (Approx.)
• Housing : MS Powder coating
• Mounting: Wall or sealing with 360 º rotatable clamp
• Operating environment: 0 - 50°C / 5 to 95% RH Non condensing
• Weight (Approx.): 5.5 (or) 8.5 kg
