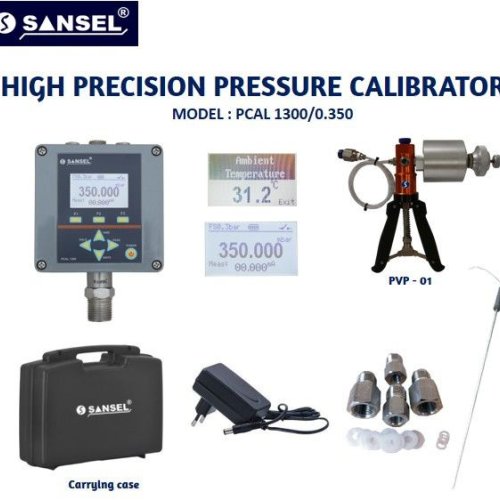

High Precision Pressure Calibrator PCAL 1300/0.350mbar

Exact Pressure Measurement and Monitoring are Must in Applications Crucial to Operational Safety of Machinery and Industrial Installations. Regular Inspection of the Pressure gauges / sensor / transmitters / indicators Used in these Applications is Absolutely Essential for Economic and Technical - Safety Reasons and is Already Prescribed as Obligatory in Many Sectors

Description:

“SANSEL” PCAL 1300 / 0.350 mbar is a Micro controller based precision pressure calibrators generates true reference pressure. Connect the gauge to be calibrated in the calibrator. Set the pressure using respective pump when stabilization.

Specifications:

• MODEL : Pcal 1300/±350mbar


• Range (bar) : ±350 mbar


• Pressure media : Air


• Pressure pump : HP-04


• Display : 128 x 64 COG Graphic LCD with White LED Back light


• Pressure Port : 2 x 1/4" BSP Female


• Pump dimension in mm (Appox.) : 170 x 45 (Height x Dia)


• Resolution (bar) : 6 digit user selectable


• Instrument Port : 1/4 BSP Male x 10 mm long


• Instrument dimension : 100 x 100 x 55 (W x H x D) mm


• Instrument Weight : 400gms (Appox.)


• Stability time : 1 to 2 mins


• Accuracy : ±0.05%FS


• Pressure units* (selectable) :bar, mbar, Mpa, kpa, kg/cm2,inHg,cmHg,mmHg,mH₂o, ftH₂o,inH₂o, cmH₂o,mmH₂o


• Pressure Zero : One touch zero provided on front key


• Pressure Peak : Maximum &minimum with user reset option


• Pressure overflow : FS X 2 (Max.)


• Pressure burst : FS X 3 (Max.)


• Temp.Measure : RTD-PT 100 (2,3,4, wire selectable)


• Pressure overflow : FS X 2 (Max.)


• Pressure burst : FS X3 (Max.)


• Temp.Measure : RTD-PT 100 (2,3,4, wire selectable)


• Temp. Range : -199.999 to 850.000


• Switch test : Provided


• mA Measure : 0-24 mA (scalable)


• Display scale : -99999 to 99999 counts (for mA measure input)


• Display Hold : One touch hold provided on front key


• Power Supply : 9V DC ±5% / 200mAh Rechargeable battery with battery life 4hours


• with out back light(or) 9V DC adapter /230V AC supply operated


• Pump Weight (gms)(Approx.) : 700


• Pc Interface : RS 485


• Pc Software : Windows based semi automatic calibration software (optional)
