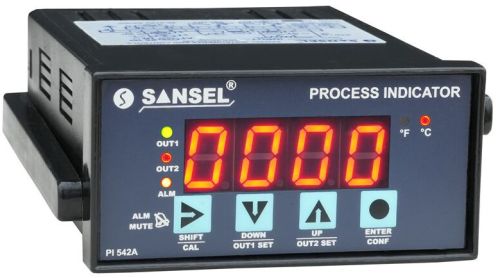

4 Digit Process Indicator PI 542A

Link Copied

Edit

Business Type	Manufacturer, Exporter
Brand Name	SANSEL
Product Code	PI 542A
Delivery Time	28 days

Model: PI – 542A
Display: 4 Digit, 0.5” 7 segment RED LED
Analog inputs: 0 - 20 mA, 0 to 70 mV, 0 - 10 V DC, 0.0 – 400.0 Ω (H & L Limit Programmable)
Temperature inputs: RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E
Display Range: -1999 to 9999 counts (H & L Limit programmable)
Temperature range (H & L Limit programmable):
RTD - PT 100 (-199.9 to 800.0°C )
TC - J (- 200 to 200°C )
TC - K (- 200 to 1372°C )
TC - R ( 0 to 1765°C )
TC - S ( 0 to 1762°C )
TC - T (- 199.9 to 400.0°C )
TC - B ( 600 to 1800°C )
TC - N (-200 to 1300°C )
TC - E ( -199.9 to 916.0°C )
Accuracy:
0.05% FS ±1 counts (Except Thermocouple)
0.05% FS ±2 counts (only for Thermocouple)
Unit selection: °C / °F (for RTD & TC inputs)
Analog input resolution mV, mA & V: 0.001 / 0.01 / 0.1 / 1 (Selectable)
Temperature resolution: 0.01 (For RTD - PT 100 input (°C) only) /0.1 / 1 °C / °F
Filter constant: 1 – 100% (adjustable)
Relay Output* (optional): 2 Relay (5A rated) with 4 Relay Status Selection, Adjustable Hysteresis, Cyclic Delay
Re Transmission* (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
PC communication* (optional): RS 485 (2 wire) MODBUS RTU protocol
PC Software* (optional): Monitoring, Data logging, Report & graph
Sensor Supply (external): 24 V DC ±10% @ 100 mA
Operating environment: 0 to 50°C / 5 to 95% RH non condensing
Power supply: 90 to 270 V AC / DC / 50/60 Hz
Overall Dimensions: 48(H) X 96(W) X 110(D) mm
Cut out Dimension: 44(H) x 90(W) mm
Housing: Panel mountable ABS plastic
Weight: 300 grams (Approx.)
