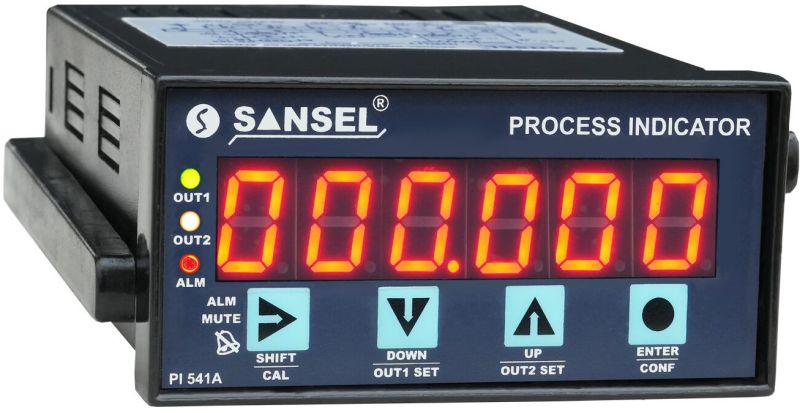

6 Digit High Precision Universal Process Indicator PI 541A

Model: PI – 541A

Display: 6 Digit 7 segment RED LED

Inputs: 0 - 20 mA, 0 to 75 mV, -10 to 10 V DC, 0 – 4000 Ω (H & L Limit Programmable)
RTD - PT 100, PT-1000, Thermocouple - J, K, R, S, T, B, N, E

Cold junction Accuracy: ± 0.3°C

Resolution: 0.0001 / 0.001 / 0.01 / 0.1 / 1°C Selectable for Analog
0.01°C for RTD and 0.1°C for TC

Unit selection: °C / °F (for RTD & TC inputs)

Linearization: Programmable custom Linearization provided (1 - 21 points)

Input signal filter: 1 – 100% user configurable

Cold junction compensation: Automatic inbuilt ‘CJC’ is provided

Relay Output* (optional): 2 Relay (5A rated) with 4 Relay Status Selection, Hysteresis, Cyclic Delay

Alarm settings: Front key settable

Alarm indication : Two LED on front panel

Re Transmission* (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC for process variable

PC communication* (optional): RS 485 (2 wire) MODBUS protocol

PC Software* (optional): Monitoring, Data logging, Report & graph

Sensor excitation Supply: 24 V DC ±10% @ 100 mA

Power supply: 90 to 270 V AC / DC / 50/60 Hz

Front panel : IP 65 protection

Operating environment: 0 to 50°C / 5 to 95% RH non condensing

Overall Dimensions: 48(H) X 96(W) X 110(D) mm

Cut out Dimension: 44(H) x 90(W) mm

Enclosure: ABS plastic

Weight: 350 grams (Approx.)
