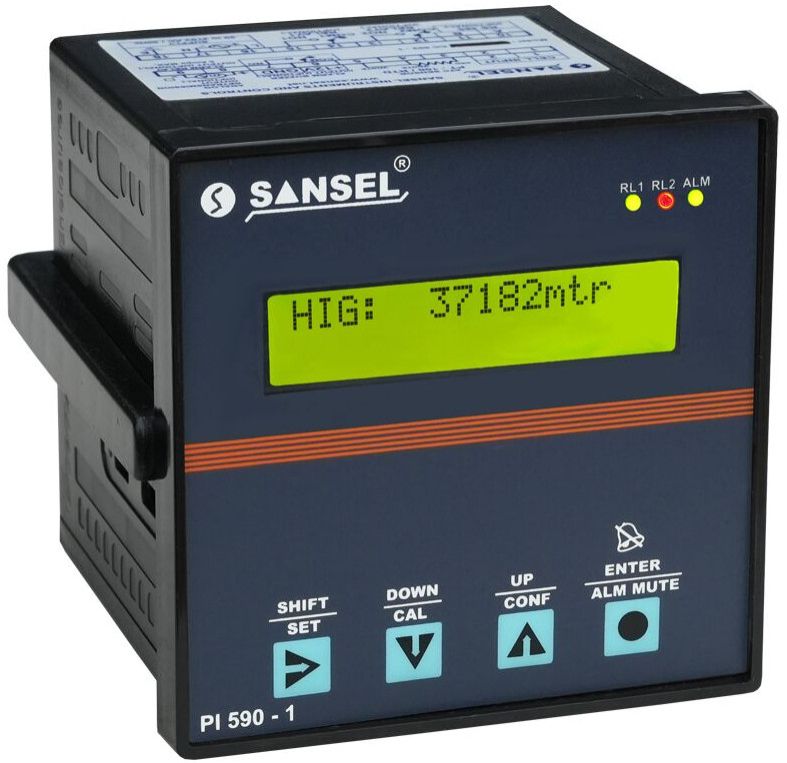

Process Indicator PI 590-1

Link Copied

Edit

Product Details

Delivery Time

28 days

Model : PI 590-1
Display: 16 character x 2 line LCD
Input: -75 to +75mV / 0 to +20mA / -10 to + 10V ( programmable Input Lo & Hi Limits)
Range: -199999 to +199999 (programmable Range Lo & Hi Limits)
Resolution: 0.00001 / 0.0001 / 0.001 / 0.01 / 0.1 / 1 (selectable)
Accuracy : ± 0.1% of FS / ± 0.05 % of FS
Sensor Supply Working : 24 V DC / 100 mA
Relay Output (Optional): 2 NO , 2 COM 5 A Rated Relay with individual H / L set
Re transmission Output (Optional) : 4 - 20 mA (or) 0 - 10V DC (Factory Selectable)
Working temperature : 0 - 50 ºC
Power Supply : 90 to 270V AC / DC 50Hz
Dimension : 96 x 96 x 65 mm.
Weight : 200 grams (Approx.)
