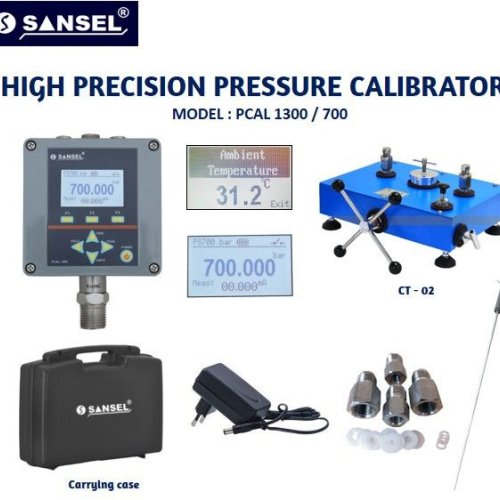

High Precision Pressure Calibrator

Exact Pressure Measurement and Monitoring are Must in Applications Crucial to Operational Safety of Machinery and Industrial Installations. Regular Inspection of the Pressure gauges / sensor / transmitters / indicators Used in these Applications is Absolutely Essential for Economic and Technical - Safety Reasons and is Already Prescribed as Obligatory in Many Sectors

Description:

“SANSEL” PCAL 1300 / 2 is a Micro controller based precision pressure calibrators generates true reference pressure. Connect the gauge to be calibrated in the calibrator. Set the pressure using respective pump when stabilization.

Specifications:

• Model : PCAL 1300 / 2 bar
• Range (bar) : −0.9 to 2 bar
• Pressure Media : Air
• Pressure Pump : PVP – 01, 02
• Display : 128 × 64 COG Graphic LCD with White LED Back Light
• Instrument Port (at Pump) : 3/8” BSP Female
• Test Port (at Pump) : ¼” BSP Female
• Instrument Port : 3/8” BSP Male
• Pump Dimension in mm (Approx.) : PVP – 01 (230 × 220 × 70 mm (H × W × D)), PVP – 02 (230 × 140 × 65 mm (L × B × H))
• Resolution (bar) : 6 Digit User Selectable
• Instrument Port (Extended) : ¼” BSP Male × 10 mm Long
• Instrument Dimension : 100 × 100 × 55 (W × H × D) mm
• Instrument Weight : 400 gms (Approx.)
• Stability Time : 1 to 2 mins
• Accuracy : ± 0.05% FS
• Pressure Units (Selectable)* : bar, mbar, MPa, kPa, Pa, PSI, kg/cm², inHg, cmHg, mmHg, mH₂O, ftH₂O, inH₂O, cmH₂O, mmH₂O
• Pressure Zero : One Touch Zero Provided on Front Key
• Pressure Peak : Maximum & Minimum with User Reset Option
• Pressure Overflow : FS × 2 (Max.)
• Pressure Burst : FS × 3 (Max.)
• Temperature Measure : RTD – PT100 (2, 3, 4 Wire Selectable)
• Temperature Range : −199.999 to 850.000
• mA Measure : 0–24 mA (Scalable)
• Display Scale : −99999 to 99999 Counts (for mA Measure Input)
• Switch Test : Provided
• Display Hold : One Touch Hold Provided on Front Key
• Power Supply : 9 V DC ±5% / 600 mAh Rechargeable Battery with Battery Life 20 Hours without Backlight (or) 9 V DC Adapter / 230 V AC Supply Operated
• Pump Weight (gms) (Approx.) : PVP – 01 (1.1 kg), PVP – 02 (750 gms)
• PC Interface (Optional) : RS-485 (2 Wire) (Note: Connect to PC using USB to RS-485 Converter Supplied along with PC Software)
• PC Software (Optional) : Windows Based Semi-Automatic Calibration Software (Optional)
