Product Details
Product Code
HCAL 1104U
Delivery Time
28 days

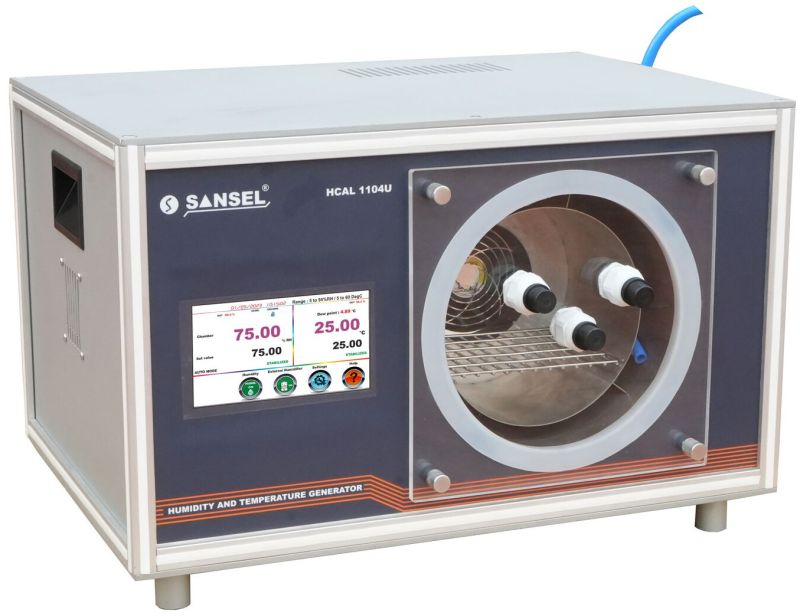

- Model : HCAL 1104U – v2
- Display: 7” True colour TFT LCD Display with Touch screen
- Control Range : 5 to 60°C / 3 to 95 % RH*
- Dew point Temperature range (psychometric calculated) : -30°C to 45°C
- Psychometric calculated indication : Dew / Frost point ( Dp / Fp )
Wet Bulb Temperature ( Tw )
Vapour partial pressure ( E )
Vapour Saturation pressure ( Ew )
Mixing ratio by weight (dry) ( g / kg )
Enthalpy ( H ) ( KJ / kg )
Specific Humidity (moisture) ( g / kg )
Absolute Humidity (moisture) ( g / m³ )
Volume mixing ratio (dry) ( ppm ) - Calculation method : WMO method
- Resolution : 0.01 °C / 0.01% RH
- Display stability : Better than ± 0.03 °C / ± 0.15% RH
- Chamber stability @25°C **
Temperature: ± 0.1°C, Humidity: ± 0.3 % RH - Chamber Uniformity @25°C**
Temperature: ± 0.2°C, Humidity: ± 0.5 % RH - Test sensor insert port: Inter changeable Acrylic door is provided on front side of the chamber with pg21 gland (cable or sensor size range from 13 to 18mm) x 3nos
- External Humidifier Water tank capacity: 6 litres (approx.)(NOTE : 3 liter filling is enough for our application)
- Humidifier Liquid: Distilled water
- Humidifying Time:2 %RH / sec (50 to 90 % RH)
- Dehumidifying Time: 6 %RH / sec (50 to 10 % RH)
- Test chamber area: 230mm DIA x 170mm D (Approx)
- Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
- Power Consumption: 1000 VA
- Construction: Inner chamber SS 310 / outer MS powder coating
- Overall Dimension: 436mm L x 676mm W x 368mm H (Approx.)
- Weight: 44 kg (without Accessories) + 6 kg (standard accessories) (Approx.)
