Economy Dry Block Temperature Calibrators

SANSEL Model TCAL 1401 / -30 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from -30* to 100°C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Food, Pharmaceutical and all types of process industries. Having it’s advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / -30 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 16mm). Additional Inserts(optional) with special drillings are available to order.

Features :

• High Bright 4 + 4 digit 7 seg LCD Display with 4 keys
• Portable & Rugged
• Range from -30* to 100°C
• No Liquids, Safe dry Calibration
• Micro Controller Based Linearized High Accuracy
• Stable to ± 0.1°C
• Axial + Radial uniformity - better than ± 0.15°C
• Inter changeable insert to suit different diameter sensor - up to 22 mm
• ISO / IEC 17025 Standard Accredited Calibration Certificate

Accessories

• Basic Instrument
• Standard well insert
• Well tool
• Spare fuses
• Instruction manual
• Mains card
• Carry bag
• Traceable calibration certificate

Optional

• Master Indicator with sensor
• Additional well insert
• Carrying case

SANSEL Model TCAL 1401 / 1200 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from 500 to 1200°C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Glass, Steel, Forging and all types of process industries. Having it’s advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / 1200 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 39mm). Additional Inserts(optional) with special drillings are available to order.

Features :

• High Bright 4 + 4 digit 7 seg LCD Display with 4 keys
• Portable & Rugged
• Range from  500 to 1200°C
• No Liquids, Safe dry Calibration
• Micro Controller Based Linearized High Accuracy
• Stable to ± 2°C
• Axial + Radial uniformity - better than ± 2°C
• Inter changeable insert to suit different diameter sensor - up to 39 mm
• ISO / IEC 17025 Standard Accredited Calibration Certificate

Accessories :

• Basic Instrument
• Spare fuses
• Standard well insert
• Well tool
• Instruction manual
• Mains card
• Traceable calibration certificate

Optional :

• Master Indicator with sensor
• dditional well insert
• Carrying case

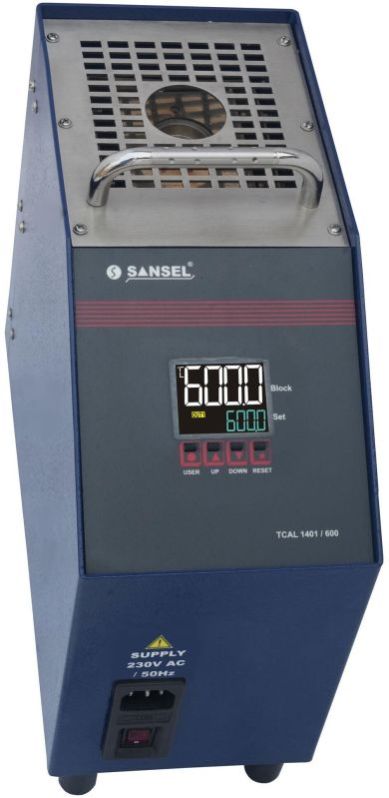

SANSEL Model TCAL 1401 / 600 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from Amb.+5 to 600°C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Food, Pharmaceutical and all types of process industries. Having it’s advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / 600 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 30mm). Additional Inserts(optional) with special drillings are available to order. ECONOMY DRY BLOCK TEMPERATURE CALIBRATOR For Thermocouple & RTD Sensor Calibration MODEL : TCAL 1401 / 600 “ Total Solution Under One Roof ” Manufacturing, Servicing & Calibration 15.

Features :

• High Bright 4 + 4 digit 7 seg LCD Display with 4 keys
• Portable & Rugged
• Range from Amb.+5 to 600°C
• No Liquids, Safe dry Calibration
• Micro Controller Based Linearized High Accuracy
• Stable to ± 0.1°C
• Axial + Radial uniformity - better than ± 1°C
• Inter changeable insert to suit different diameter sensor - up to 30 mm
• ISO / IEC 17025 Standard Accredited Calibration Certificate

Accessories :

• Basic Instrument
• Spare fuses
• Standard well insert
• Well tool
• Instruction manual
• Mains card
• Traceable calibration certificate

Optional

• Master Indicator with sensor
• Additional well insert
• Carrying case
