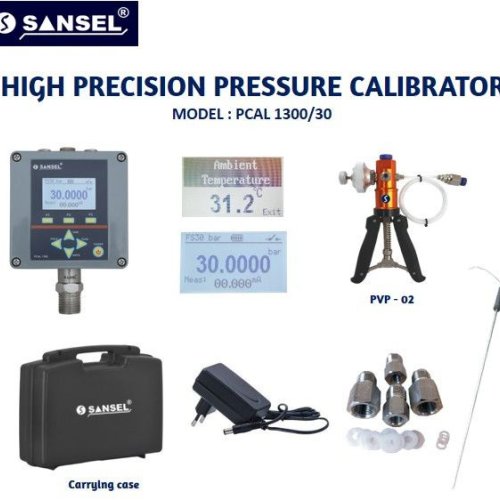

High Pressure Gauge

Link Copied

Edit

Business Type	Manufacturer
Brand Name	SANSEL

Model: PCAL 1300 / 30 bar
Range (bar): -0.9 to 30 bar
Pressure media: Air
Pressure pump: PVP – 02
Display: 128 × 64 COG Graphic LCD with White LED Backlight
Instrument port (at pump): 3/8" BSP Female
Test Port (at pump): ¼” BSP Female
Pump dimension in mm (Approx.): 230 × 140 × 65 mm (L × B × H)
Resolution (bar): 6 digit user selectable
Instrument Port: 3/8” BSP Male
Instrument dimension: 100 × 100 × 55 (W × H × D) mm
Instrument Weight: 400gms (Approx.)
Stability time: 1 to 2 mins
Accuracy: ± 0.05% FS
Pressure units * (selectable): bar, mbar, MPa, kPa, Pa, PSI, kg/cm², inHg, cmHg, mmHg, mH₂O, ftH₂O, inH₂O, cmH₂O, mmH₂O
Pressure Zero: One touch zero provided on front key
Pressure Peak: Maximum & minimum with user reset option
Pressure overflow: FS X 2 (Max.)
Pressure burst: FS X 3 (Max.)
Temp.Measure: RTD -PT 100 (2,3,4, wire selectable)
Temp. Range: -199.999 to 850.000
mA Measure: 0-24 mA (scalable)
Display scale: -99999 to 99999 counts (for mA measure input)
Switch test: Provided
Display hold: One touch hold provided on front key
Power Supply: 9V DC ±5% / 600 mAh Rechargeable battery with battery life 20 hours without backlight (or) 9V DC adapter / 230V AC supply operated
PC Interface (optional): RS-485 (2 wire) (Note: connect to PC using USB to RS 485 converter supplied along with PC software)
PC Software (optional): Windows-based semi-automatic calibration software (Optional)
Pump weight (gms) (Approx.): 750 gms
