Humidity and Temperature Generator

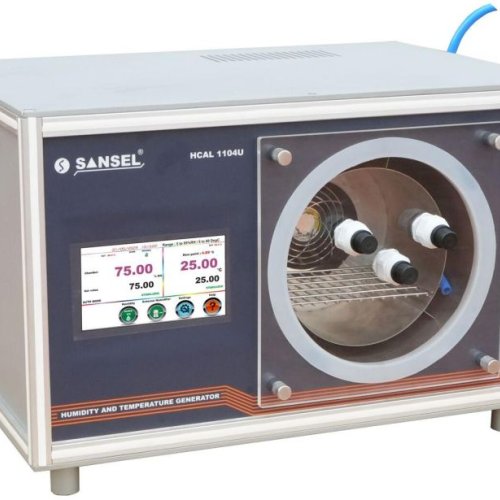

SANSEL Model HCAL 1104U – v2 Humidity and Temperature Generator is to perform a rapid & easy calibration of portable instruments, sensors, Transmitter and data logger of different manufacturers. Solid state Heating & Cooling technology with high performance humidification system, generate precision chamber stability & uniformity gradient range from 5 to 60°C(Temp.) / 5 to 95 % RH*(Humd.) / -25 to 40°C(Dew point)

Features

• MODEL : HCAL 1104U - v2

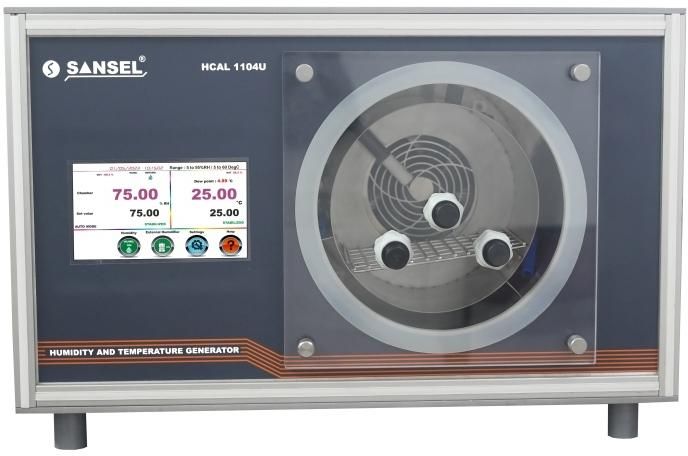

• Display : 7” True Colour TFT Touch Screen Display
• Control Range* : 5 to 60°C / 3 to 95 % RH*
• Dew Point Temperature Range (Psychometric Calculated) : −30°C to 45°C
• Psychometric Calculated Indication :
• Dew / Frost Point (Dp / Fp), Wet Bulb Temperature (Tw), Vapour Partial Pressure (E), Vapour Saturation Pressure (Ew), Mixing Ratio by Weight (Dry) (g / kg), Enthalpy (H) (KJ / kg), Specific Humidity (Moisture) (g / kg), Absolute Humidity (Moisture) (g / m³), Volume Mixing Ratio (Dry) (ppm)
• Calculation Method : WMO Method
• Resolution : 0.01 °C / 0.01 % RH
• Display Stability : Better than ± 0.03 °C / ± 0.15 % RH
• Chamber Stability @ 25°C ** : Temperature ± 0.1°C, Humidity ± 0.3 % RH
• Chamber Uniformity @ 25°C ** : Temperature ± 0.2°C, Humidity ± 0.5 % RH
• Test Sensor Insert Port : Interchangeable Acrylic Door is provided on front side of the chamber with PG21 gland (cable or sensor size range from 13 to 18 mm) × 3 Nos
• External Humidifier Water Tank Capacity : 6 Litres (Approx.) (NOTE : 3 Liter filling is enough for our application)
• Humidifier Liquid : Distilled Water
• Humidifying Time : 2 % RH / sec (50 to 90 % RH)
• Dehumidifying Time : 6 % RH / sec (50 to 10 % RH)
• Test Chamber Area : 230 mm DIA × 170 mm D (Approx.)
• Power Supply : 230 V AC ± 10 % / 50 Hz (Optional 110 V AC)
• Power Consumption : 1000 VA
• Construction : Inner Chamber SS 310 / Outer MS Powder Coating
• Overall Dimension : 436 mm L × 676 mm W × 368 mm H (Approx.)
• Weight : 46 kg (Without Accessories) + 6 kg (Standard Accessories) (Approx.)
