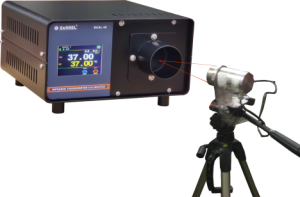

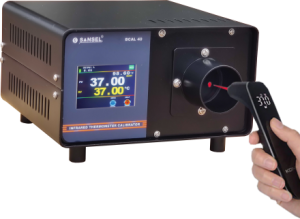

BCAL 40 IR Temperature Calibrator

SANSEL Model BCAL 40, Black body Calibrator is used to measure the accuracy and performance of non-contact fever detection systems, like medical thermometer & image scanner. Now it is being used in relation to COVID-19 (corana virus). This Blackbody Source meets the demand for a simple cost effective solution but high accurate device for the calibration of thermal imager and IR thermometers that are used at temperature around that of the human body. Unlike Heat only devices, This model uses a solid state Heat & cool Technology, so that this can be generate both Heat and Cool. This having benefits to maintain the block temperature in different ambient temperature.

Features :

• 3.5 inch True TFT display with touch screen
• Range from 20 to 50°C / 68 to 122°F @ Body mode
• Range from 0 to 100°C / 32 to 212°F @ Surface mode @ Amb. 25°C
• Universal wide range power supply 90 to 260V AC / DC
• Extension tube gives better uniformity and avoid losses due to ambient temperature and air movement.
• Indicates both °C & °F at a time
• Stable to ± 0.03°C
• Accurate better than ± 0.3 °C
• Portable, Rugged & Onsite carryable

Technical Details

• Temperature Range Body Mode : 20 to 50 °C / 68 to 122 °F
• Surface Mode : 0 to 100 °C / 32 to 212 °F
• Resolution 0.01 °C
• Stability ± 0.03 °C
• Display 3.5 inch True TFT display with touch screen
• Accuracy ± 0.3 °C
• Temperature Read out °C & °F at a time
• Heating time 10 minutes (Amb. to 50 °C)
• Stabilization time 10 minutes
• Aperture area 25 mm
• Emissivity 0.950
• Power supply 90 to 260V AC / DC / 50/60 Hz
• Power Consumption less than 100 VA
• Overall Dimension in mm 210 x 210 x 140 (L x B x H)(Approx.)
• Instrument Weight 3.7 kg

Accessories :

• Basic Instrument
• Small extension tube
• Large extension tube
• Carry bag
• Traceable calibration certificate
• Spare fuses
• Instruction manual
• Mains card

Optional :

• Carrying case
