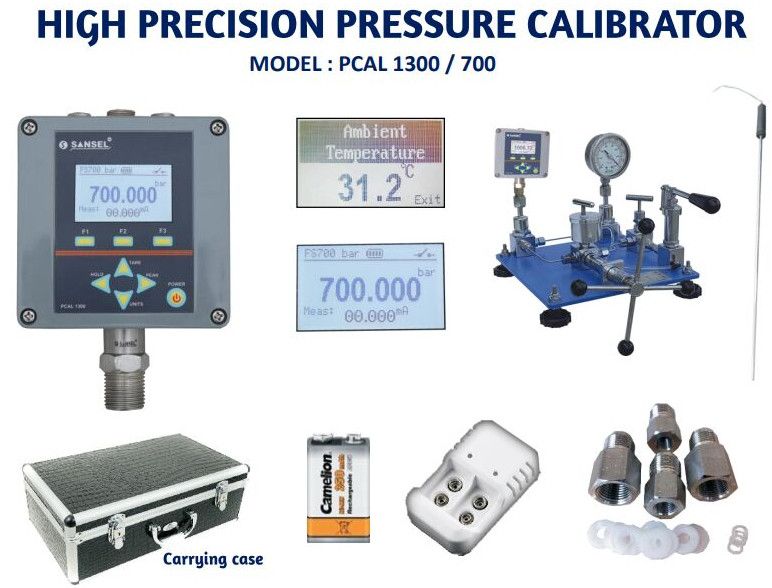

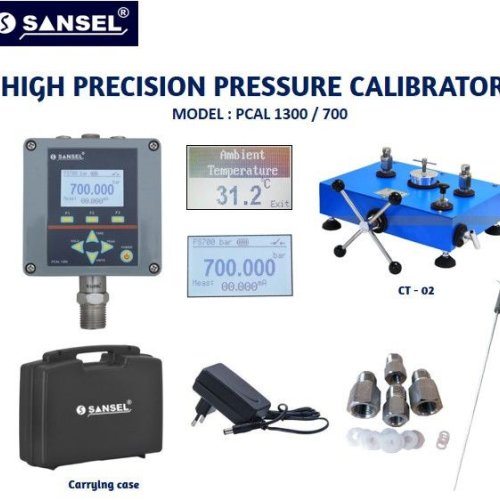

Pressure Calibrator Pcal 1300/700

Exact Pressure Measurement and Monitoring are Must in Applications Crucial to Operational Safety of Machinery and Industrial Installations. Regular Inspection of the Pressure gauges / sensor / transmitters / indicators Used in these Applications is Absolutely Essential for Economic and Technical - Safety Reasons and is Already Prescribed as Obligatory in Many Sectors.

Description:

“SANSEL” PCAL 1300 / 700 is a Micro controller based precision pressure calibrators generates true reference pressure. Connect the gauge to be calibrated in the calibrator. Set the pressure using respective pump when stabilization.

Applications in

Energy - Production and Energy -Distribution Sectors

Glass, Ceramic, Semi Conductor Industries

Steel Material Processing Industries

Calibrators laboratories etc,

Specifications:

• Model: Pcal 1300 / 700 bar
• Range (bar): 0 to 700 bar
• Pressure media: Oil & Water
• Pressure pump: CT – 02
• Display: 128 × 64 COG Graphic LCD with White LED Backlight
• Resolution (bar): 6 digit user selectable
• Instrument Port: ½” BSP Male x 10 mm long
• Instrument dimension: 100 × 100 × 55 (W × H × D) mm
• Instrument Weight: 400 gms (Approx.)
• Stability time: 1 to 2 mins
• Accuracy: ± 0.05% FS
• Pressure units * (selectable): bar, mbar, MPa, kPa, Pa, PSI, kg/cm², inHg, cmHg, mmHg, mH₂O, ftH₂O, inH₂O, cmH₂O, mmH₂O
• Pressure Zero: One touch zero provided on front key
• Pressure Peak: Maximum & minimum with user reset option
• Pressure overflow: FS X 2 (Max.)
• Pressure burst: FS X 3 (Max.)
• Temp.Measure: RTD - PT 100 (2,3,4, wire selectable)
• Temp. Range: -199.999 to 850.000
• mA Measure: 0-24 mA (scalable)
• Display scale: -99999 to 99999 counts (for mA measure input)
• Switch test: Provided
• Display Hold: One touch hold provided on front key
• Power Supply: 9V DC ±5% / 600 mAh Rechargeable battery with battery life 20 hours without backlight (or) 9V DC adapter / 230V AC supply operated
• Pump Weight (Approx.): 14 kg
• PC Interface (optional): RS-485 (2 wire) (Note: connect to PC using USB to RS 485 converter supplied along with PC software)
• PC Software (optional): Windows-based semi-automatic calibration software (Optional)
