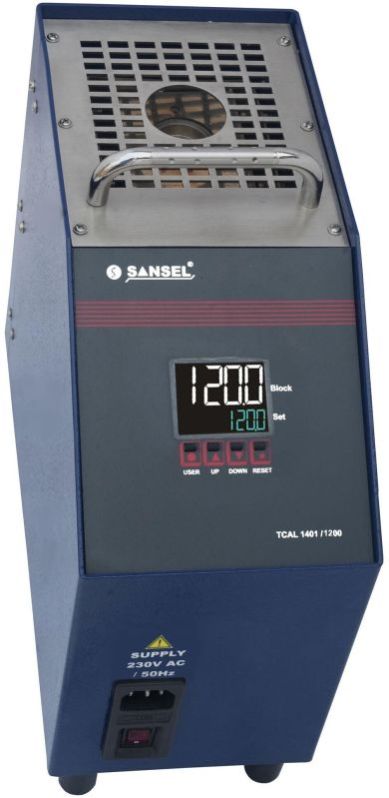

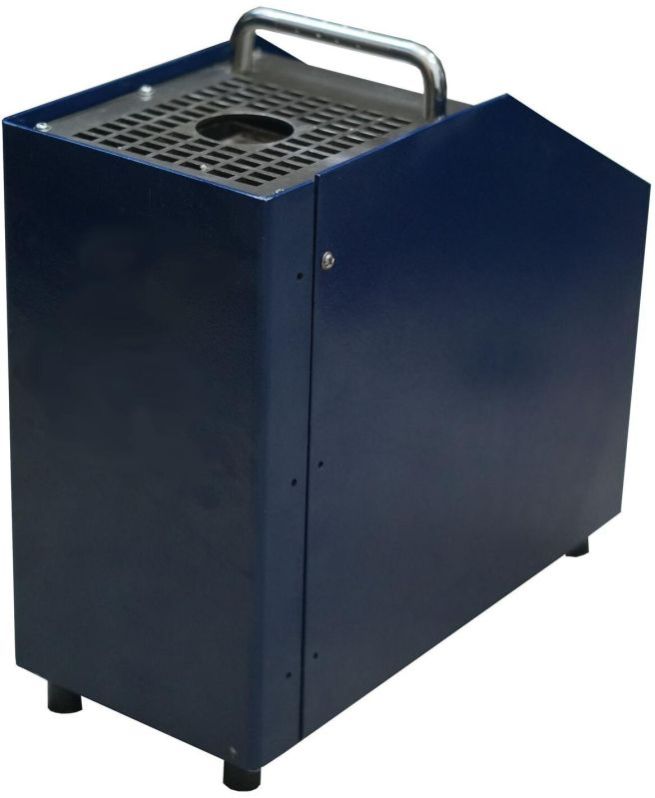

TCAL 1401/1200 Dry Block Temperature Calibrator

1 Piece (MOQ)

Business Type Manufacturer, Exporter
Brand Name SANSEL

Preferred Buyer From

Location Worldwide

SANSEL Model TCAL 1401 / 1200 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from 500 to 1200°C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Glass, Steel, Forging and all types of process industries. Having it’s advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / 1200 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 39mm). Additional Inserts(optional) with special drillings are available to order.

Features :

  • High Bright 4 + 4 digit 7 seg LCD Display with 4 keys
  • Portable & Rugged
  • Range from  500 to 1200°C
  • No Liquids, Safe dry Calibration
  • Micro Controller Based Linearized High Accuracy
  • Stable to ± 2°C
  • Axial + Radial uniformity - better than ± 2°C
  • Inter changeable insert to suit different diameter sensor - up to 39 mm
  • ISO / IEC 17025 Standard Accredited Calibration Certificate


Accessories :

  • Basic Instrument
  • Spare fuses
  • Standard well insert
  • Well tool
  • Instruction manual
  • Mains card
  • Traceable calibration certificate


Optional :

  • Master Indicator with sensor
  • dditional well insert
  • Carrying case

Yes! I am interested


Specifications

Model TCAL 1401 / 1200
Temperature Range 500 to 1200°C
Resolution 1 °C
Stability ± 2 °C
Axial + Radial Uniformity Better than ± 2 °C
Display 0.58” (15mm)(Block) / 0.3”(7.8mm) (Set) 4 digit LCD Display with 4 keys
Accuracy Better than ± 2°C
Temperature Read out °C
Heating time 50 mins (Amb. To 1200 °C)
Cooling time 120 mins (1200 to 100 °C)
Stabilization time 30 minutes
Well Dimension(dia. X height) 39 x 150 mm
Standard well holes in mm 5.2, 6.2, 6.2, 10.1 & 12.1
Power supply 230V AC ± 10% / 50Hz (Optional 110V AC)
Power Consumption 1900 VA
Overall Dimension in mm 340 x 175 x 425 (L x B x H)(Approx.)
Instrument Weight 18 kg(without well insert)(Approx.)
