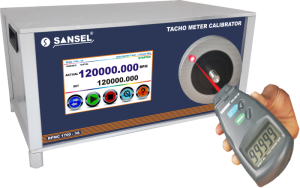

The RPMC 1700 Series is high precision Tachometer calibrator, generates true reference rotation per minute (RPM). This calibrator uses “German technology” with high speed motor, high precision encoder and adoption of a new power full 32 bit CPU in control drive, featuring automated gain tuning function, stability, stable stop, rugged in use and many more. Due to it’s light weight and rugged Aluminium enclosure, it is suitable for in-house and on-site calibration of contact / non contact Tachometer, Tacho coil, Tacho generator, RPM indicator, RPM transmitter, Speedo meter, Proximity sensor, Stroboscope, etc,.
Features :
Accessories :
Optional :
Specifications
Model | RPMC 1700 - 3A |
Control Range | Contact : 0 to 8000 RPM Non Contact : 0 to 1,20,000 RPM |
Resolution | 0.001 RPM |
Display Stability | Contact : ± 0.002 RPM, Non Contact : ± 0.01 RPM |
Stability | Contact : ± 0.1 RPM, Non Contact : ± 2 RPM |
Accuracy | Contact : ± 0.2 RPM, Non Contact : ± 5 RPM |
Display | 7” True colour TFT LCD Display with Touch screen |
Stability Time | Within 5 seconds |
Noise level | < 50dB |
Motor | Ultra stable motor with high resolution Encoder & Drive |
Power supply | 230V AC ± 10% / 50Hz (Optional 110V AC) |
Power Consumption | 750 VA |
Outer Enclosure Construction | Aluminium Anodised |
Overall Dimension | 260mm L x 440mm W x 230mm H (Approx) |
Instrument Weight | 13 kg(Approx.) |
