Jumbo Process Counter

Features :

• View the Count Display From Long Distance 3 to 30V DC Input From any type of Pulse 0/P Sensor
• 4" & 8" Available in Different Segment Sizes (1" & 2" on Request)
• Different type of Mounting Wall, Selling, Panel, "L" Clamping
• 6 Digit Seven Segment LED Display
• Wide Range 999999 Counts
• Allows Maximum 3.5 kHz Input Pulse Speed
• NPN PNP , LIMIT Switch,etc., differnet type of Input selection
• Front End Reset with Protection
• External Reset Options
• 10 Years Memory Backup
• 12 V DC Sensor Supply
• Supply Voltage 230V AC

Specifications:

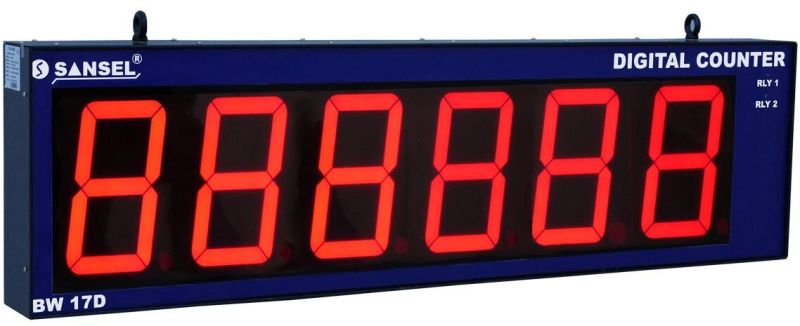

• Model: BW 16D (4” display) & BW 17D (8” display)
• Display: 6 digit 2”, 4”, & 8” height 7 segment red LED display
• Range: 0 – 999999 counts
• Resolution: 1 count / pulse
• Input: 3-30V DC pulse from Proximity sensor, Photoelectric non-contact sensor, Encoder Potential free contacts, Limit switch, etc.,.
• Memory backup: Provided if power is failure
• Input speed: 3.5 kHz (Max.)
• Sensor supply: 12V DC (±10%) 50mA
• Power Supply: 230V AC / 50Hz
• Working temperature: 0 – 50°C
• Weight: 8 kg
