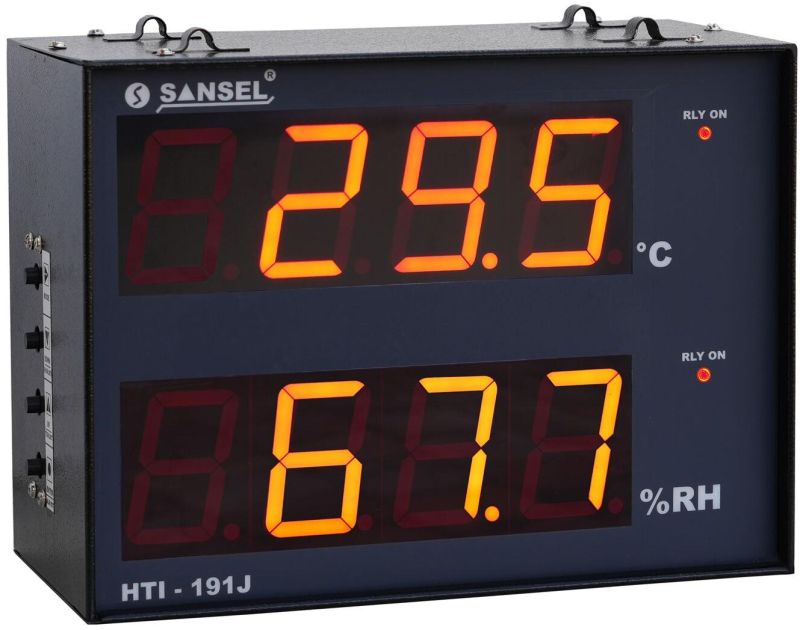

Jumbo Humidity & Temperature Indicator

Measurement of relevant Climatic data is becoming more and more important.This Humidity & Temperature Indicator offer Very Accurate Measurement of Relative Humidity and Temperature by Excellent readability of the very High intensity Seven Segment LED Display. The Humidity & Temperature Indicator Housed with roughest Case allow the use in tough industrial environments, Latest Technology and well Proven Sensor Guaranteed Highest Accuracy and Long Term Stable Measurement.

Features :

• 4 Digit 2 Line 2”, 4” , 8” Seven Segment LED Display
• Temperature Range from - 40 to 125ºC
• Humidity Range from 0 to 100% RH
• High Resolution 0.01 or 0.1ºC / 0.1 % RH
• High Accuracy ±0.3ºC / ± 1.5 %RH
• Optional 2 relay Output with Individual H / L Set
• Optional Opto Isolated Retransmission Output
• Easy Mounting
• Compact Size and rugged
• Supply 230 V AC

Specifications :

• Display 4 +4 Digit 2" or 4" or 8" Seven Segment LED Display (Display size depends up on customer requirement)
• Range "* 0-60°C / 0 -100%RH (Depends on Sensor)
• Resolution * 0.1 or 001°C / 0.1°/0RH
• Accuracy "* " Depends on Sensor
• Mounting Wall Mountable
• Operating Temp.& Humd. 0 - 50°C / 20 to 95 % RH Non Condensing
• Power Supply 230V AC / 50Hz
• Weight 5 kg (Approx.)

Optional :

• Temperature and Humidity Sensor / Transmitter
• 2 Relay Output with individual High / Low set point
• Retransmission 4-20mA
