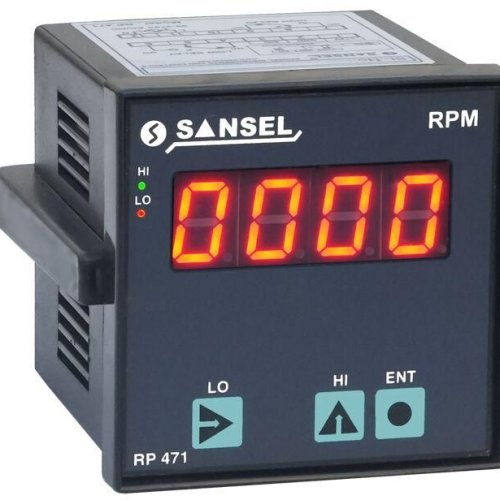

RPM Controller

Features :

• 4 Digit Seven Segment LED Display
• Wide Range 0 - 9999 RPM / RPS / RPH
• 3 to 30V DC Input Pulse from any type Sensor
• Allows Maximum 3.5 kHz Input Pulse Speed
• RPM / Rate / Frequency Front Key Scalable.
• 2 Relay Output with Front Key Set table Hi & Lo Set points
• Power ON Delay & Hysterisis for Relay Output is Provided
• 12 V DC Sensor Supply
• Universal Supply Voltage 90 to 270V AC / DC

Specifications

• Input 3 - 30V DC from Proximity Sensor, Photoelectric Non Contact Sensor, Encoder,
• Potential Free Contacts, Limit Switch etc., Input
• Input Speed 3.5 kHz (Max.)
• Range 0 - 9999 RPM / RPS / RPH
• Resolution 0.001, 0.01, 0.1,1 RPM / RPS / RPH (selectable)
• Relay Output 2 NO ,2 NC 5A Rated Relays(power ON Delay & Hysterisis provided)
• Sensor Supply 12V DC (±10%) 50mA
• Accuracy ± 0.05 % (± 1 count)
• Display 4 Digit 0.5”seven Segment Red Led
• Working temperature 0 - 50 ºC
• Power Supply 90 to 270V AC / DC 50Hz
• Dimension 72 x 72 x 65 mm
• Weight 200 grams (Approx.)
