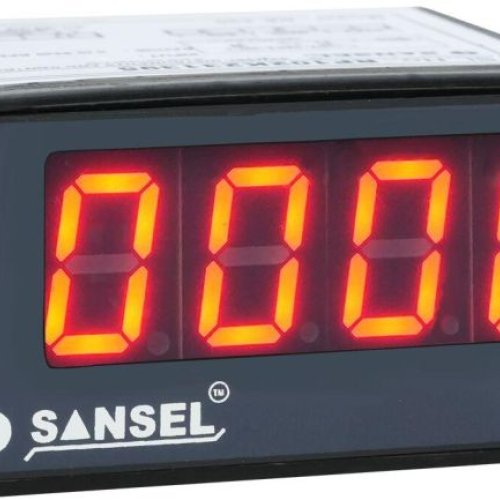

RPM Indicator

Features :

• 4 Digit seven segment LED display
• Wide range 10 RPM – 9999 RPM
• 3 to 30V DC Input Pulse from any type Sensor
• Allows Maximum 3.5 kHz Input Pulse Speed
• 12 V DC Sensor Supply
• Universal Supply Voltage 90 to 270V AC / DC
• Conveyors speed monitoring
• Motor Speed Monitoring
• All types of Speed Monitoring

Specifications :

• Model: RP 430
• Display: 4 Digit 0.5” seven segment Red LED
• Accuracy: ± 0.05 % (± 1 count)
• Range: 10 RPM to 9999 RPM
• Resolution: 0.001, 0.01, 0.1, 1 RPM (Auto ranging)
• Input: 3 - 30V DC from Proximity Sensor, Photoelectric Non Contact Sensor, Encoder, Potential Free Contacts, Limit Switch etc.,.
• Input speed: 3.5 kHz (Max.)
• Sensor supply: 12V DC (±10%) 50mA
• Working temperature: 0 – 50°C
• Power Supply: 90 to 270V AC / DC 50Hz
• Dimension: 36 x 72 x 65 mm
• Weight: 100 grams (Approx.)
