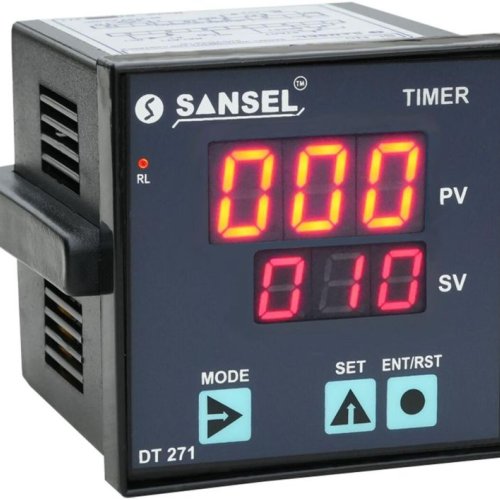

Dual Display Timer

Features :

• 3 + 3 Digit Seven Segment LED Display
• ØSeconds, Minutes, Hours Configurable
• Selectable Resolution 0.01 / 0.1 / 1
• Relay Output with Selectable Delay Mode
• Front End Reset with Protection
• External Start / Reset Options
• 10 Years Memory Backup
• Universal Supply Voltage 90 to 270V AC / DC

Specification :

• External Input START / RESET ( potential free contact inputs)
• Range 99.9 sec / 99.9, 999 Secs / Mins / Hrs(Selectable)
• Resolution 0.01 Sec / 0.1Min/Hr
• Accuracy ± 0.05 % of FS or 50 msec
• 3 Digit 0.5” RED Seven Segment LED For PV +
• Display 3 Digit 0.39” Green Seven Segment LED For SV
• Relay Output 2 NO , 2 NC 5 A Rated Relay
• Working temperature 0 - 50 ºC
• Power Supply 90 to 270V AC / DC 50Hz
• Dimension 72 x 72 x 65 mm
• Weight 200 grams (Approx.)
