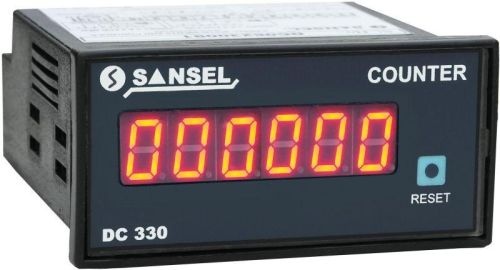

Simple Counter

Features :

• 6 Digit Seven Segment LED Display
• Wide counting range 999999 counts
• 3 to 30V DC Input Pulse from any type of Sensor
• Allows Maximum 3.5 kHz Input Pulse Speed
• Selectable input pulse speed low / medium / high
• Front key Reset with Protection
• External Reset Options
• 10 Years Memory Backup
• 12 V DC Sensor Supply
• Universal Supply Voltage 90 to 270V AC / DC

Specification :

• Model: DC 330
• Display: 6 digit 0.3“ seven segment LED display
• Range: 0 – 999999 counts
• Resolution: 1 count / pulse
• Input: 3 - 30V DC pulse input from Proximity sensor, Photoelectric Non Contact Sensor, Encoder, Potential Free Contacts, Limit switch etc.,
• Input speed: 3.5 kHz (max.)
• Sensor supply: 12V DC (± 10%) 50 mA
• Working temperature: 0 to 50°C
• Power supply: 90 – 270V AC / DC 50Hz
• Dimension: 36 x 72 x 65 mm
• Weight: 100 grams (Approx.)
