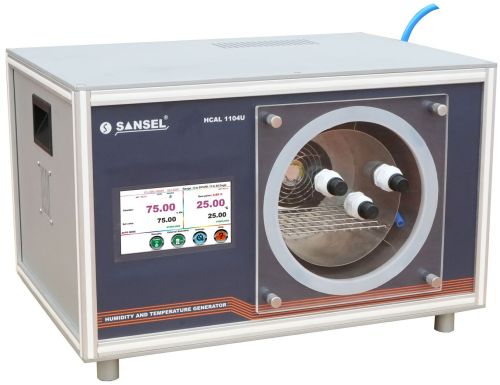

PRECISION HUMIDITY AND TEMPERATURE GENERATOR

PRECISION HUMIDITY AND TEMPERATURE GENERATOR
Link Copied

Get Best Price

Call Us
Specifications

MOQ : 1 Piece

Business Type : Manufacturer, Exporter

Brand Name : SANSEL

Color : Grey

Condition : New

  • Model : HCAL 1104U – v2
  • Display: 7” True colour TFT LCD Display with Touch screen
  • Control Range : 5 to 60°C / 3 to 95 % RH*
  • Dew point Temperature range (psychometric calculated) : -30°C to 45°C
  • Psychometric calculated indication : Dew / Frost point ( Dp / Fp )
    Wet Bulb Temperature ( Tw )
    Vapour partial pressure ( E )
    Vapour Saturation pressure ( Ew )
    Mixing ratio by weight (dry) ( g / kg )
    Enthalpy ( H ) ( KJ / kg )
    Specific Humidity (moisture) ( g / kg )
    Absolute Humidity (moisture) ( g / m³ )
    Volume mixing ratio (dry) ( ppm )
  • Calculation method : WMO method
  • Resolution : 0.01 °C / 0.01% RH
  • Display stability : Better than ± 0.03 °C / ± 0.15% RH
  • Chamber stability @25°C **
    Temperature: ± 0.1°C,  Humidity: ± 0.3 % RH
  • Chamber Uniformity @25°C**
    Temperature: ± 0.2°C, Humidity: ± 0.5 % RH
  • Test sensor insert port: Inter changeable Acrylic door is provided on front side of the chamber with pg21 gland (cable or sensor size range from 13 to 18mm) x 3nos
  • External Humidifier Water tank capacity: 6 litres (approx.)(NOTE : 3 liter filling is enough for our application)
  • Humidifier Liquid: Distilled water
  • Humidifying Time:2 %RH / sec (50 to 90 % RH)
  • Dehumidifying Time: 6 %RH / sec (50 to 10 % RH)
  • Test chamber area: 230mm DIA x 170mm D (Approx)
  • Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
  • Power Consumption: 1000 VA
  • Construction: Inner chamber SS 310 / outer MS powder coating
  • Overall Dimension: 436mm L x 676mm W x 368mm H (Approx.)
  • Weight: 44 kg (without Accessories) + 6 kg (standard accessories) (Approx.)
